Uniweld 1500 PSI Nitrogen Regulator Kit | with Dual Hose
N-REG-UNI-1500-DUAL-8R

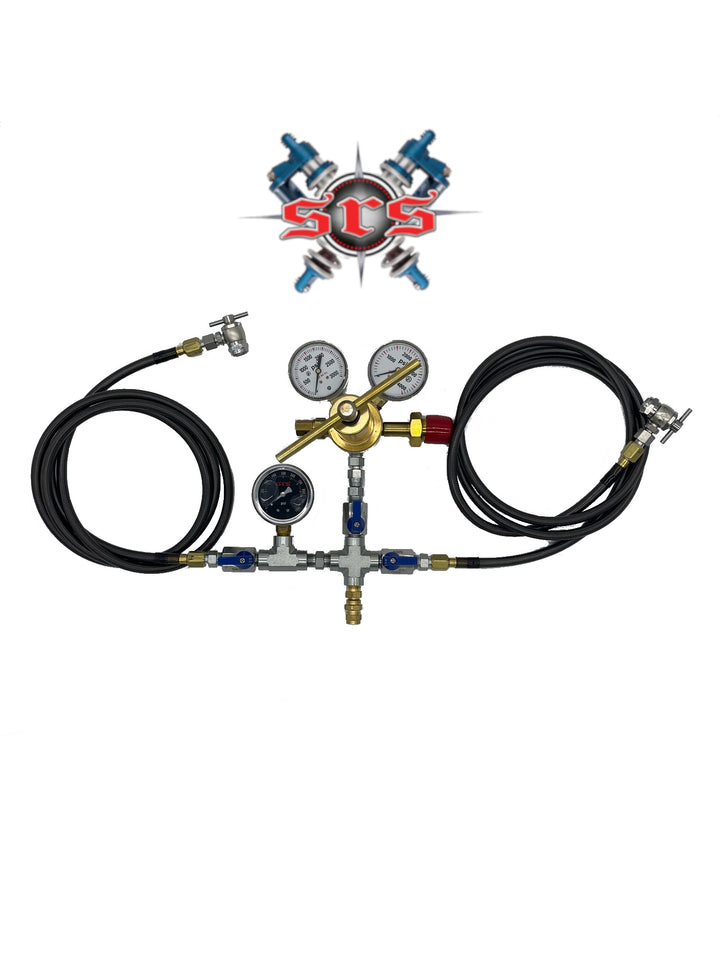

This is a dual hose shock nitrogen filling kit from Schmidty Racing Suspensions commonly used to charge shocks such as ORI, King, and Fox, or anytime you want to charge two chambers simultaneously. Kit includes a Uniweld RHP1500 (0 - 1500 PSI) regulator and comes standard with dual 8' long rubber hoses. There are different hose length options made of either rubber or stainless steel.
Hose Options:
- Rubber: 8', 15' lengths
- Stainless Steel: 6', 8', 12', 15' lengths
The rubber hoses are rated to 3250 PSI; the stainless steel ones are Teflon-lined and rated to 3000 PSI. Either type of hose has female swivel fittings on each end. The main manifold has a stainless steel shut off valves for each line. Each hose line has a small bore no-loss chuck on the end that is mounted to the hose via a swivel fitting that rotates 360 degrees to get into any position without twisting or kinking the hose. Other tips are also available under Nitrogen/Shock Tool Accessories. The no-loss chuck opens and closes schrader valve stems under constant pressure via the small "T" handle, which gives accurate and repeatable pressure setting of nitrogen pressures for all offroad ATV, ATC, UTV, dirt bike, sand rail, buggy shocks, nitrogen chambers, etc.

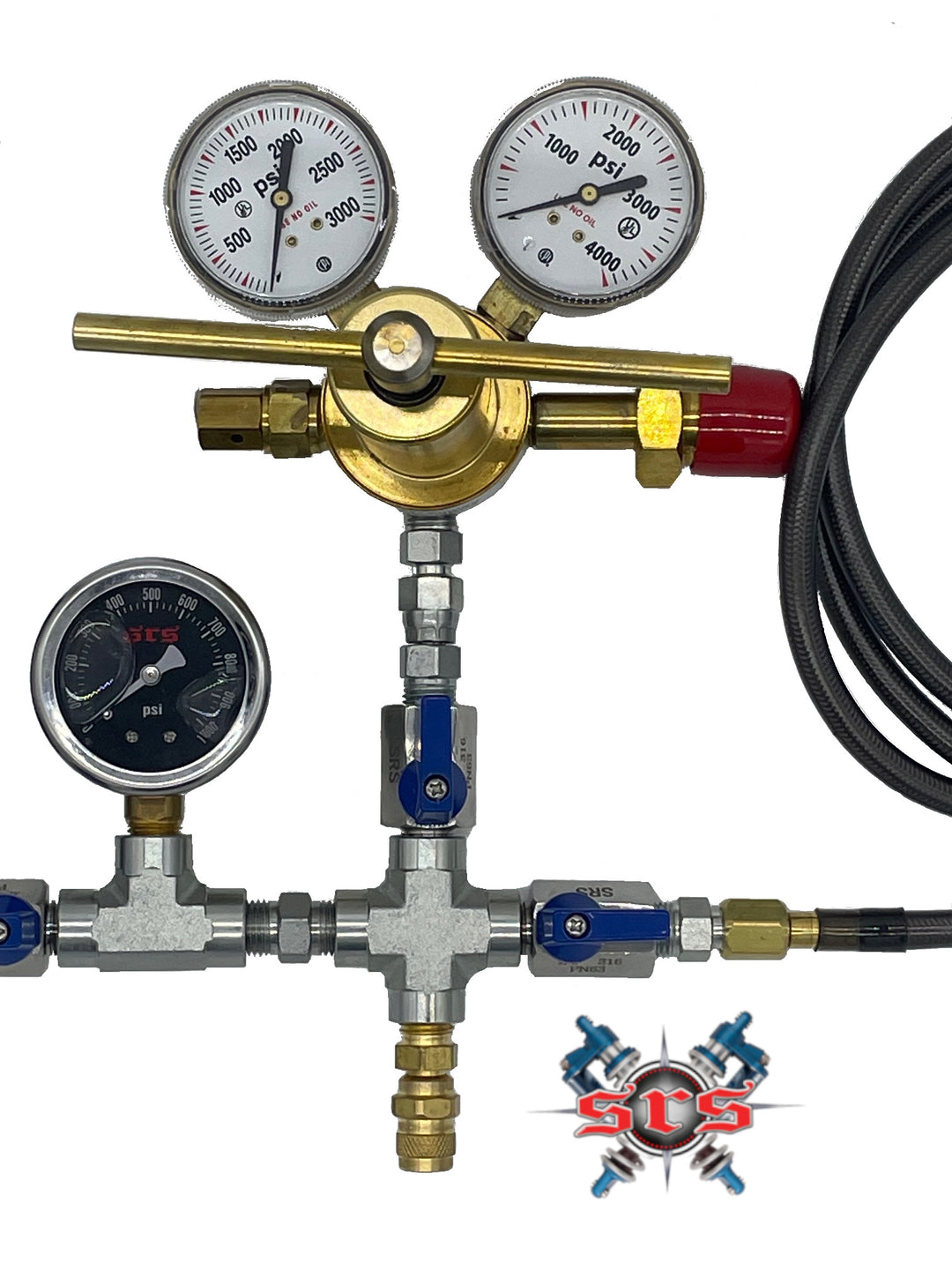

The fill tool manifold has a secondary 0 - 3000 PSI gauge (SRS logo), with a bleeder valve for fine tuning pressure on each line. The manifold assembly is detachable from the regulator via the swivel fitting for easy storage or transport. Regulator has a CGA580 tank nipple, which fits most standard nitrogen tanks, which are available at most welding supply stores. Our kits are built using the highest quality components.
Specifications:
-
RHP1500 Regulator:
- 0 - 4000 PSI tank gauge (rubber cushioned to guard from damage)
- 0 - 3000 PSI output gauge (rubber cushioned to guard from damage)
- CGA-580 tank supply nipple (will fit most nitrogen tanks available locally)
- 1500 PSI max output/delivery pressure
- 360 degree swivel fitting
- 3500 PSI max output / delivery pressure
- Fits schrader / tire stem thread size .305-32
- Seals to schrader stems via sealing crush washer
- Nickel-plated brass body; the rest of the chuck is stainless steel
- Supply line connection is -4 and is 90 degrees to axis of valve
No-Loss Chuck:
