Ford Raptor Gen 2 3.0 IBP Live Valve Rebuild Seal Kit - 2019-2021 Ford

Name: Schmidty Racing Suspensions
Address: 8150 E Germann RD, Suite 104, Mesa, AZ, 85212, US
Telephone: (602) 920-1337
Price range: $$

$45.00

Shipping calculated at checkout.

Seal Kit Option

Front - Seal Kit with WB

Front - Seal Kit with WB and Schrader

Rear - Seal Kit with WB

Rear - Seal Kit with WB and Schrader

Quantity

Description

Fit Location: Front | Rear - 2019-2021 Ford Raptor Gen 2 Live Valve
Type: Single (for 1 shock)

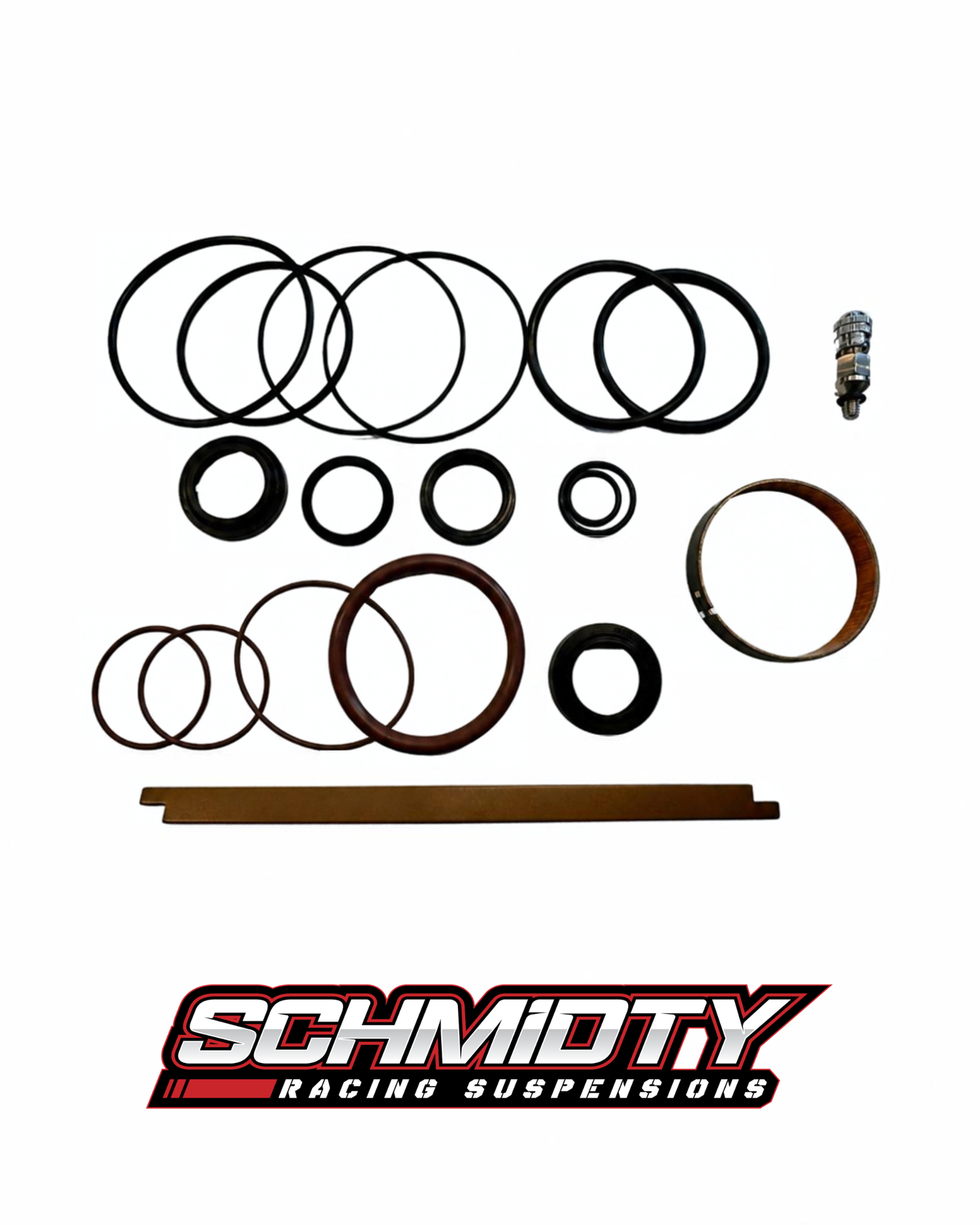

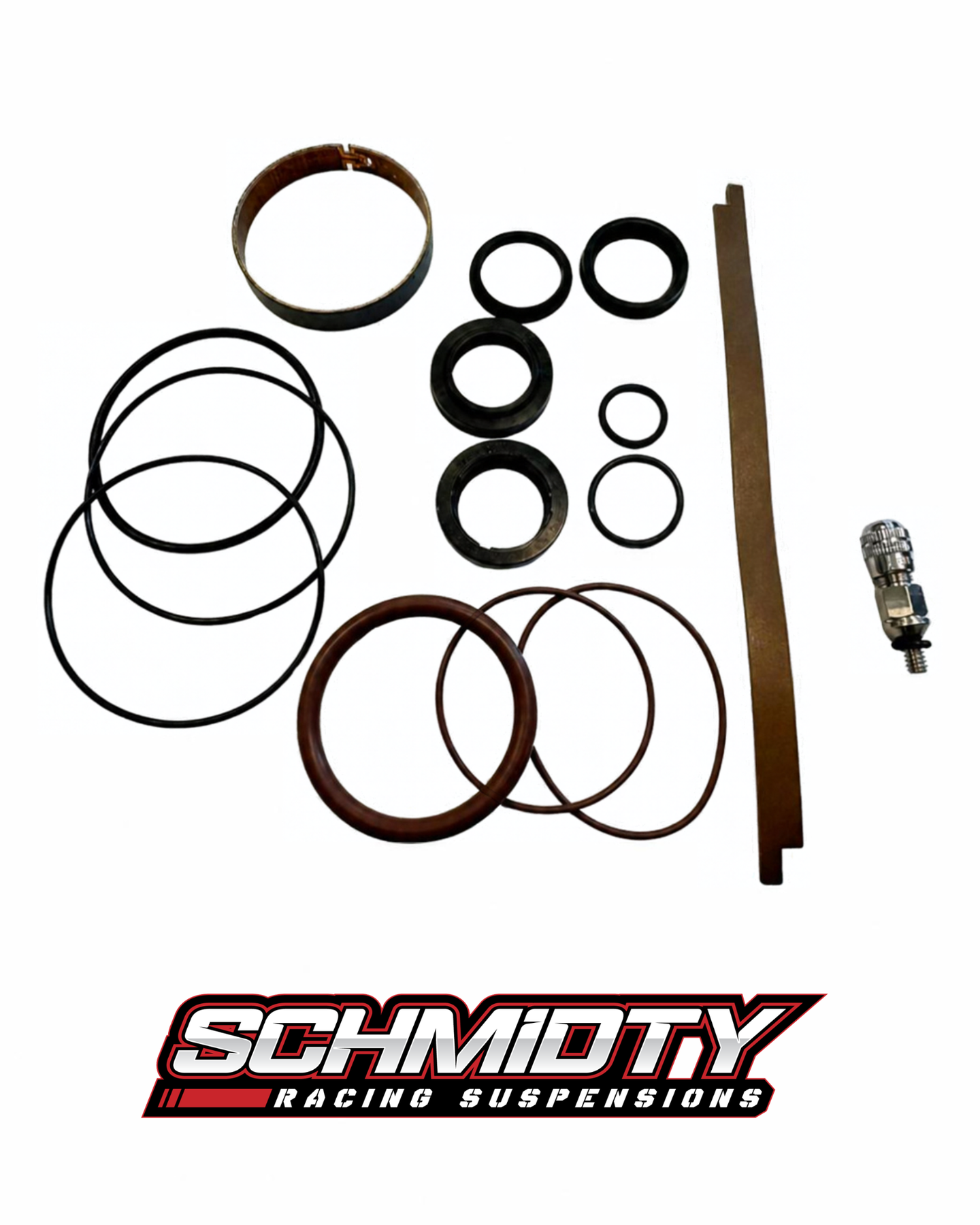

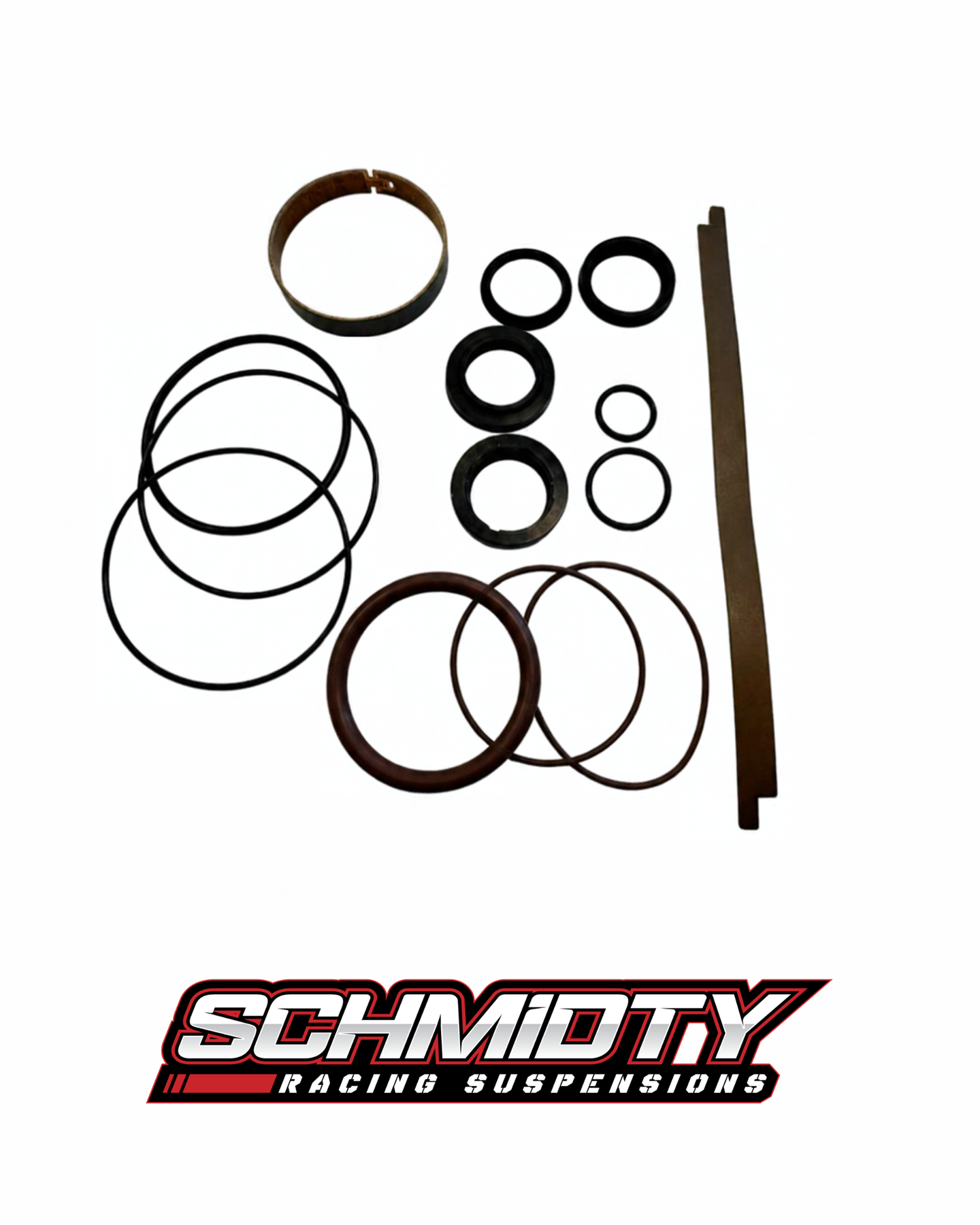

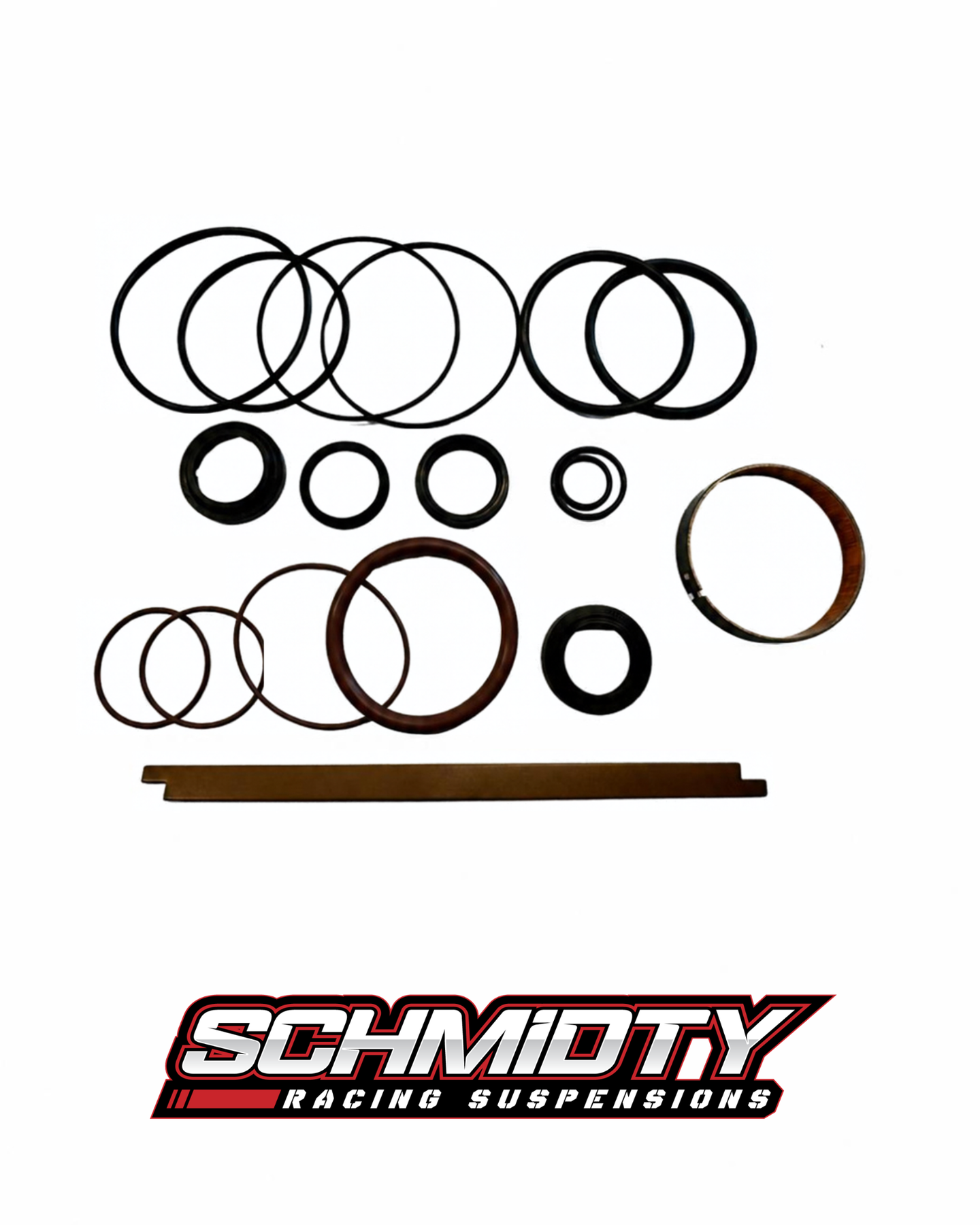

This is a shock rebuild seal kit from Schmidty Racing Suspensions for rebuilding the Fox 3.0" Live Valve internal bypass (IBP) shocks on 2019-2021 Gen 2 Ford Raptor pickup trucks. These are premium rebuild kits with VITON O-Rings and all the high temp seals needed to rebuild one (1) shock.

Front and rear kits are different. Please select the correct Front or Rear option for the shock you are rebuilding.

Technical Specs

Fits: Fox 3.0 OEM Ford Raptor Live Valve internal bypass shocks with piggyback reservoirs
Model Years: 2019-2021 Ford Raptor (Front or Rear)
Inner Cylinder Bore: 2.125"
Shaft Diameter: .875" (7/8")
Includes: All O-rings, the shaft seal, and the wiper needed to service one (1) shock, plus the IFP wearband and bronze piston wearband

Replaces Fox Part Numbers

803-01-842
803-01-843

Floating Piston (IFP) Wearband

The rear floating piston wearband is included in the kit options above, and is also sold separately on our Fox Shock Replacement Wearbands page. The rear wearband can also be used in the front coilover if trimmed to length.

**Front wearbands will need to be trimmed to the same length as the OEM takeout.

Important: Recharging Nitrogen After Service

The OEM Fox Live Valve shocks do not have a standard Schrader valve. Without a Schrader valve installed, or the Fox charge tool (approx. $450), you will not be able to recharge your shocks with nitrogen after servicing them.

We recommend choosing a kit with Schrader. It includes our stainless steel, O-ring backed replacement Schrader valve, made by Schmidty Racing. It threads directly into the OEM fill port with zero shock mods, so you can check and recharge nitrogen pressure with a standard no-loss chuck.

Kits Available:

Front - Seal Kit with IFP Wearband and Bronze Piston Wearband
Front - Seal Kit with IFP Wearband, Bronze Piston Wearband, and Schrader Valve
Rear - Seal Kit with IFP Wearband and Bronze Piston Wearband
Rear - Seal Kit with IFP Wearband, Bronze Piston Wearband, and Schrader Valve
