Description

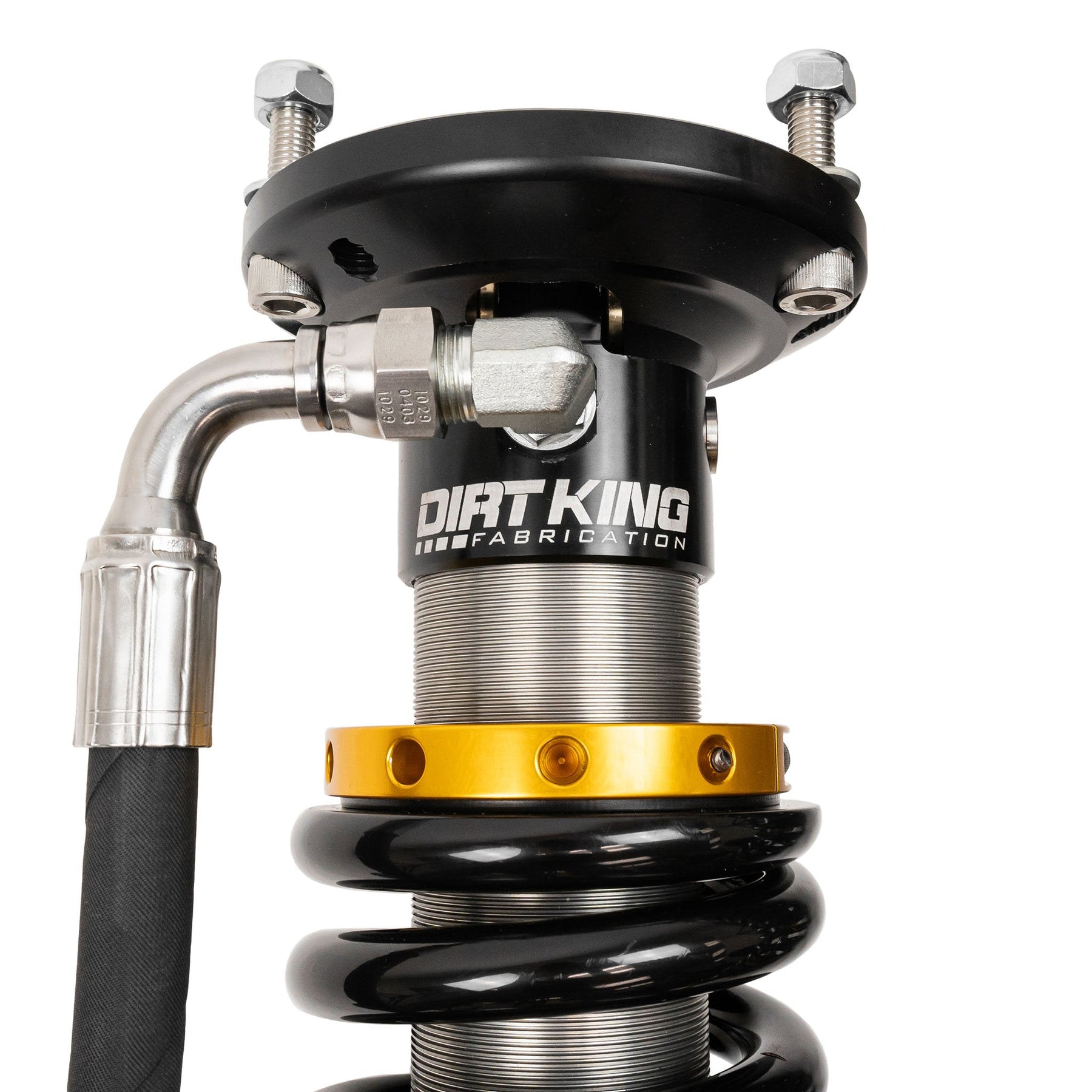

The Dirt King 2.5 Dual Compression Adjuster (DCA) Series coilovers will take your GM 1500's off-road capability to the next level while not compromising on-road comfort. Equipped with high-speed and low-speed compression adjusters, these shocks offer the flexibility to fine-tune ride quality across any terrain or driving style. Experience more control with increased wheel travel, more articulation, and higher ground clearance. The coilovers come preset with 3" of lift to level the vehicle but this can vary if you have other aftermarket upgrades. Included with the shocks is a spanner wrench allowing you to make adjustments. No detail was overlooked on this product to deliver the superior quality and performance that Dirt King is known for.
Specifications
• Standard Models:
○ Out of the Box: Provides 3" of lift (levels vehicle).
○ Max Recommended Setting: Up to 3.5" of lift.
• Trail Boss / ZR2 / AT4 / AT4X Models:
○ Out of the Box: Provides 1.5" of lift.
○ Max Recommended Setting: 1.5" of lift (Do not exceed to maintain ride quality)
• 2.5" hard-anodized 6061 aluminum bodies
• Induction-hardened 7/8" shafts
•Dual compression adjusters with 10 adjustments for each knob

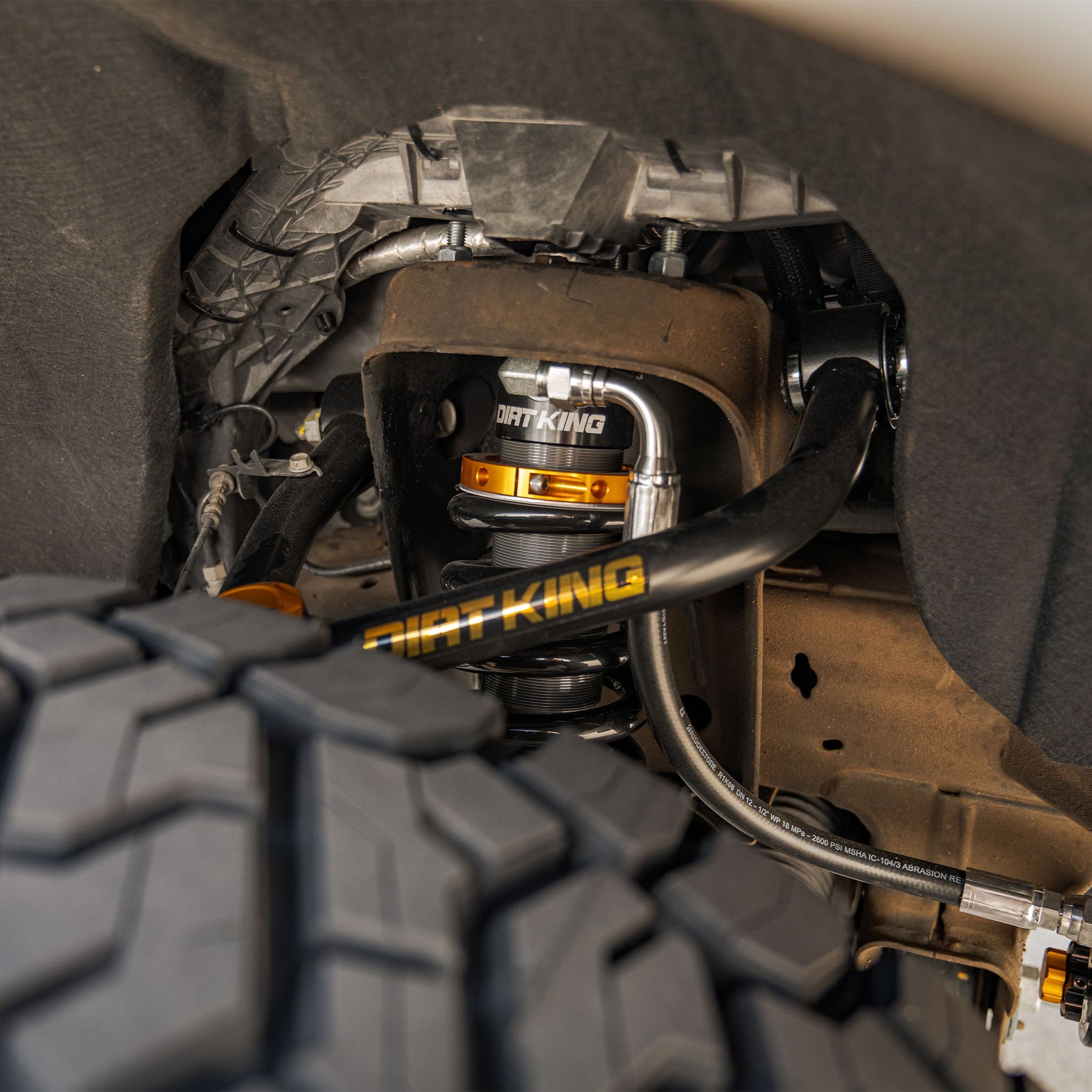

*Note: Shocks must be paired with aftermarket UCAs.
What's Included

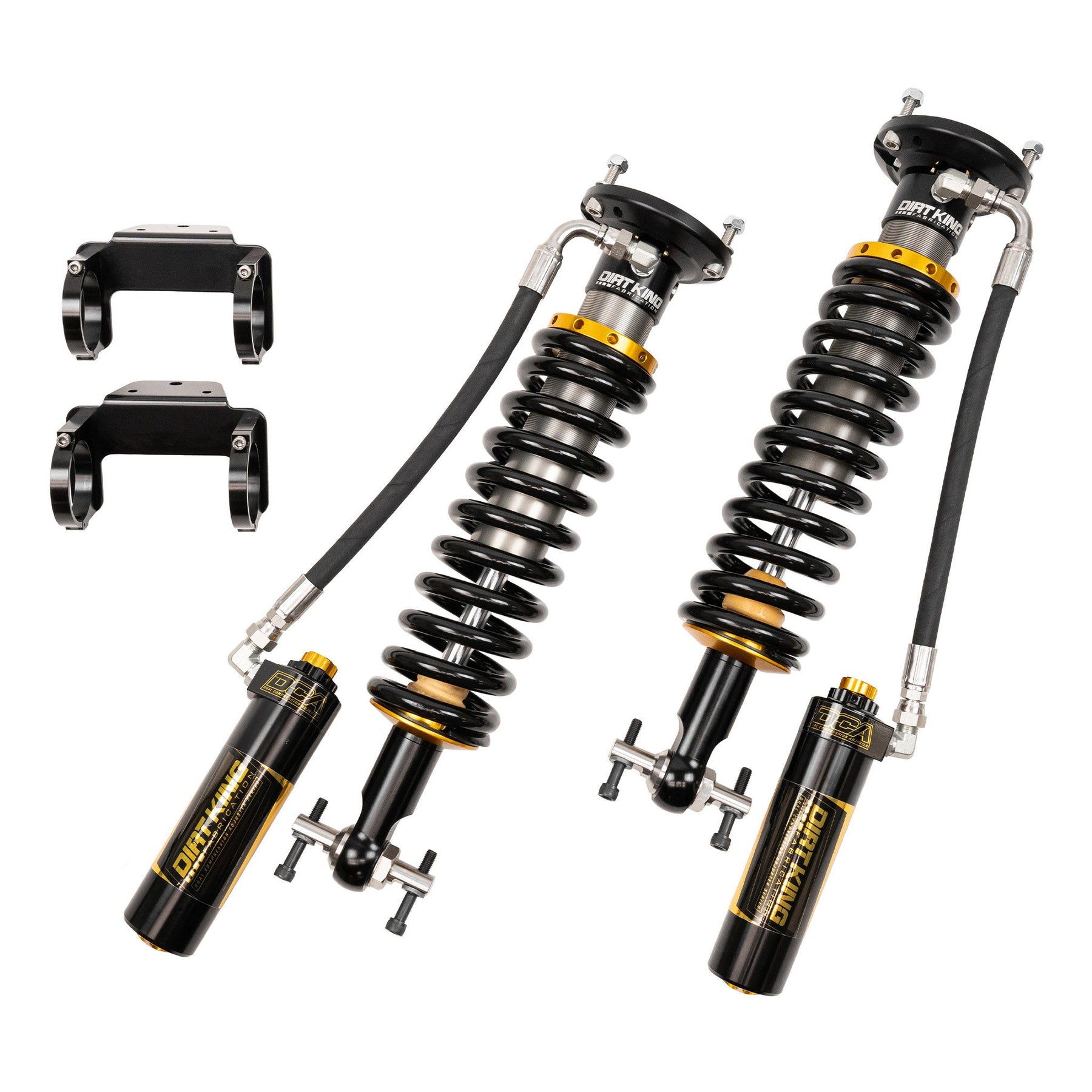

- 2.5 DCA coilover shocks with remote reservoirs

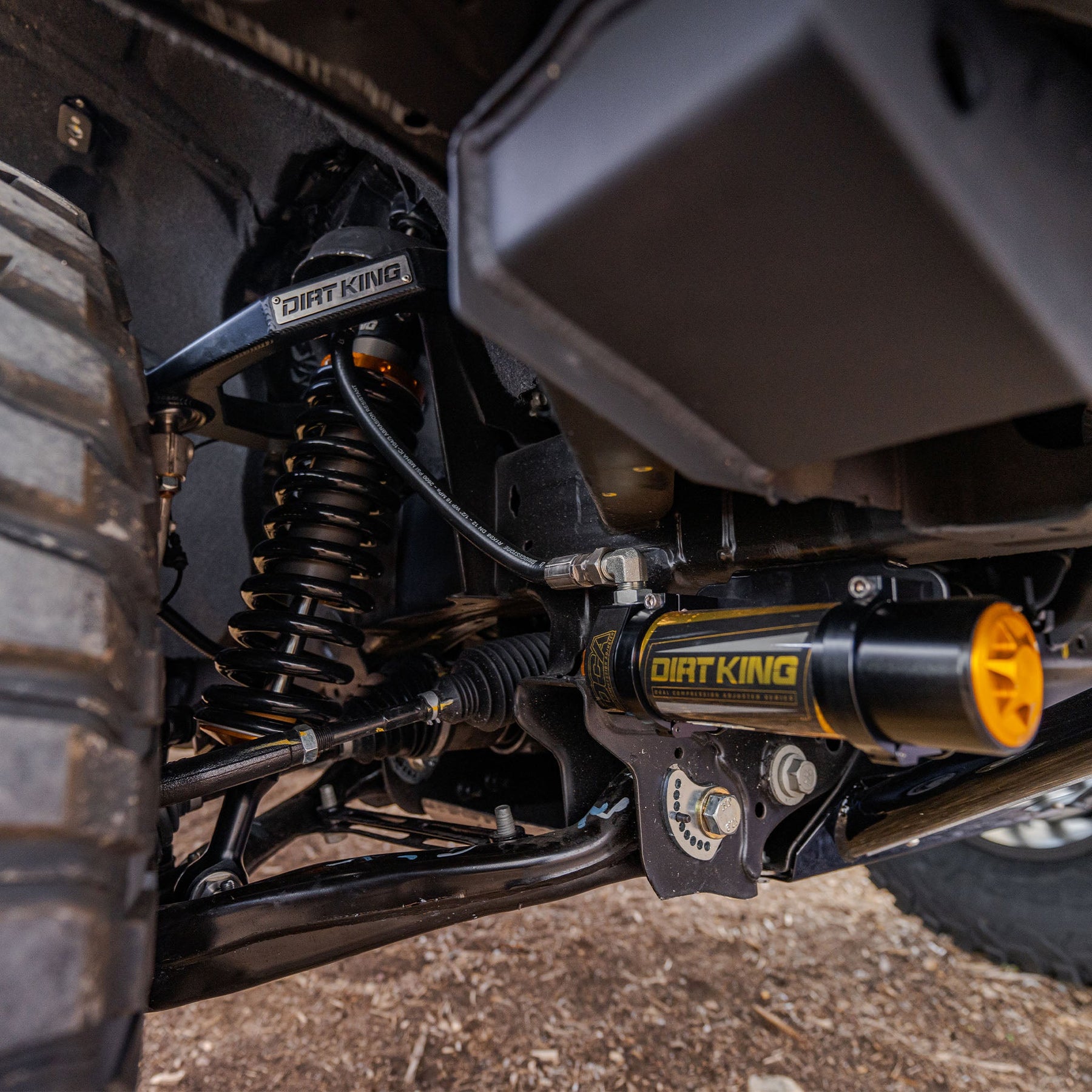

- Reservoir mounts
- Spanner wrench
- All necessary mounting hardware
- Installation instructions
Features
- Increased suspension travel
- Specific valving for each vehicle providing optimal ride comfort
- Aluminum body for cooler operation and corrosion resistance

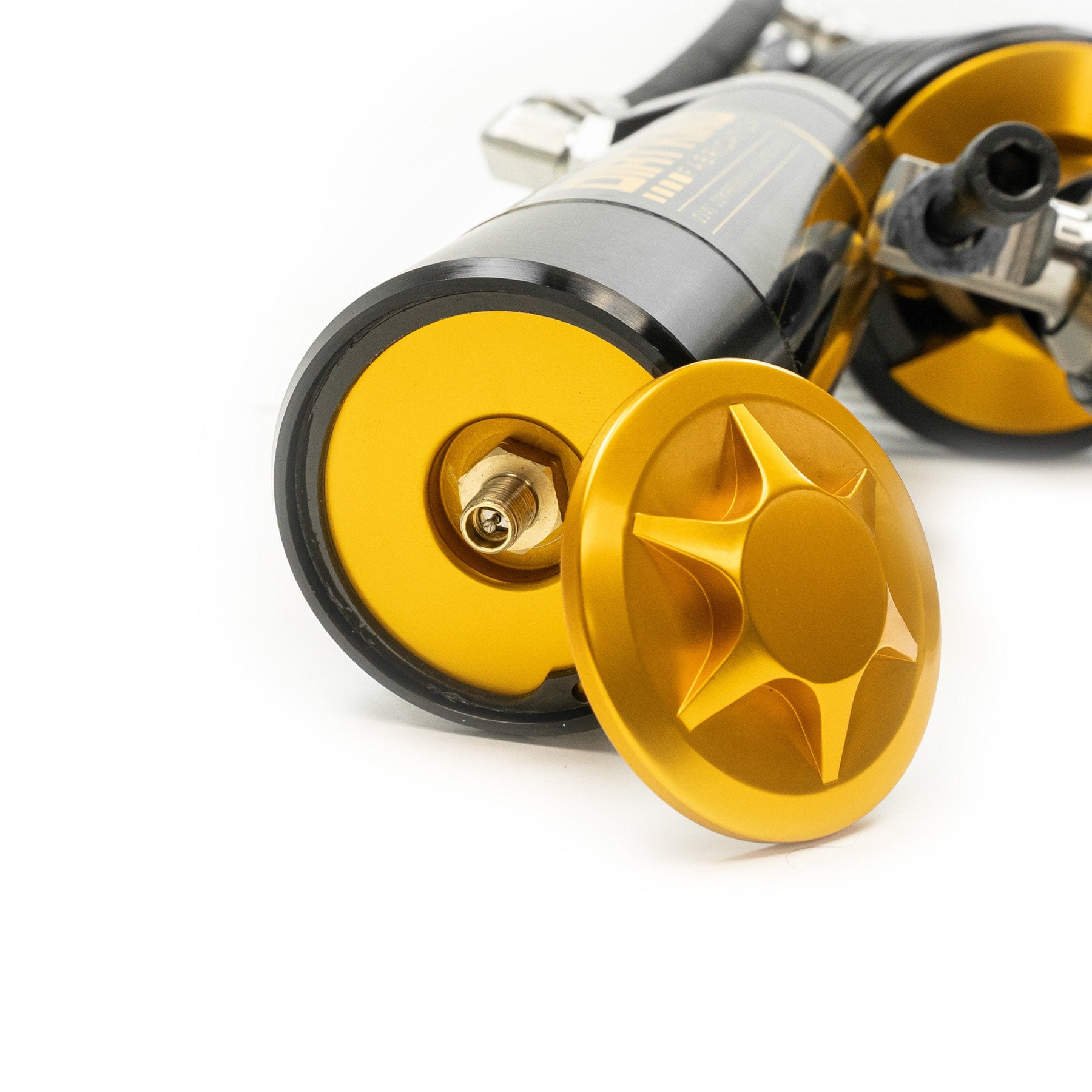

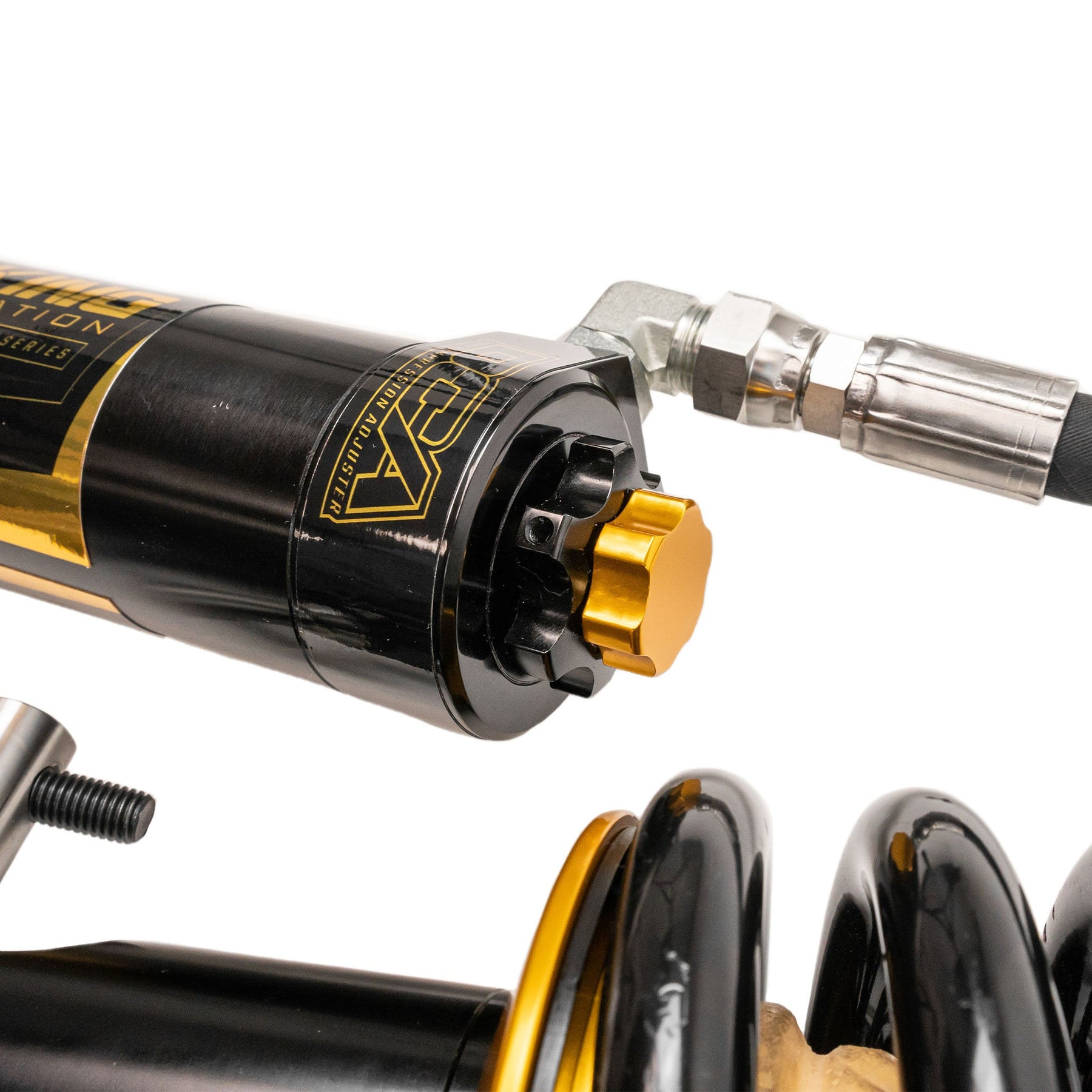

- Remote reservoir equipped with dual compression adjusters allowing for high-speed and low-speed compression adjustments

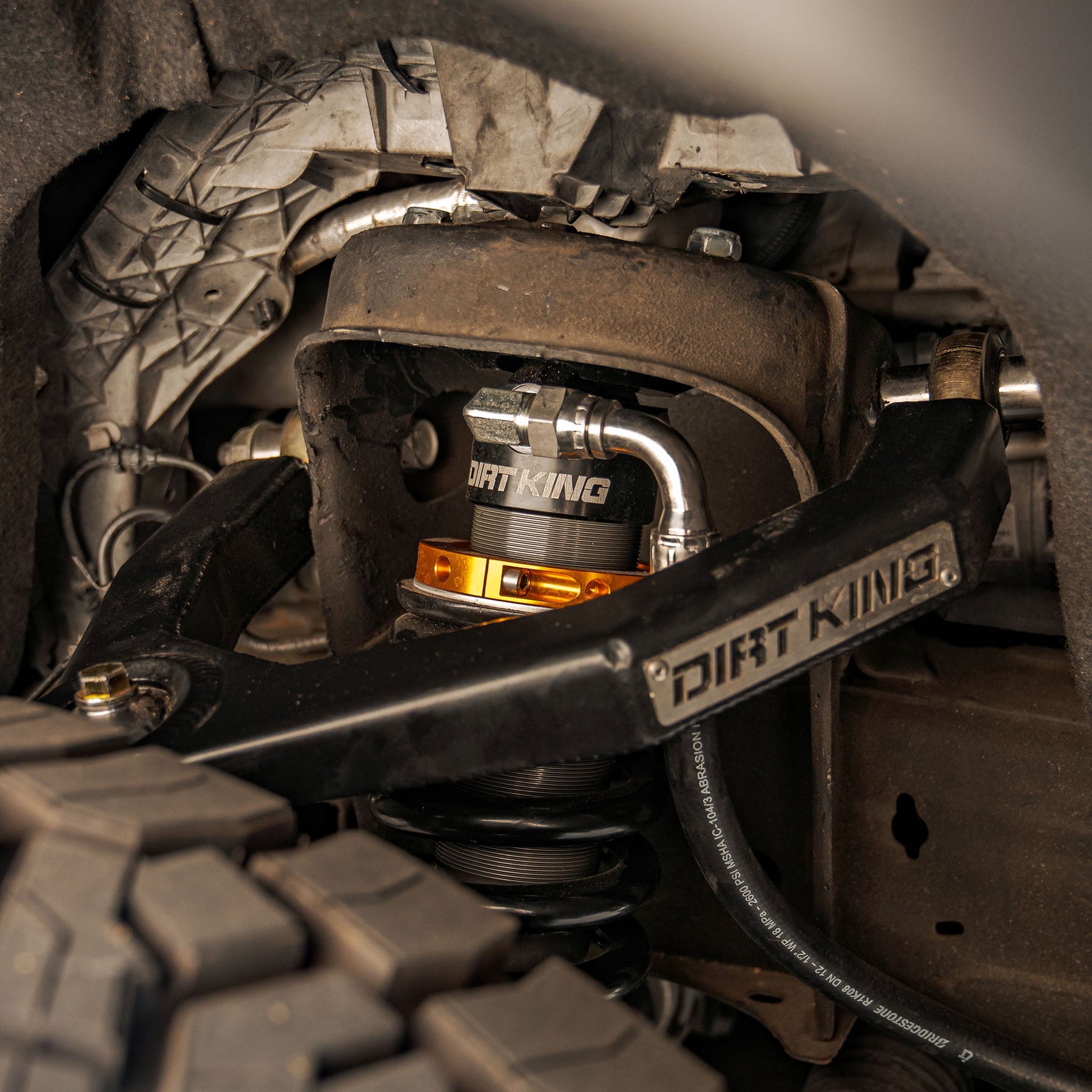

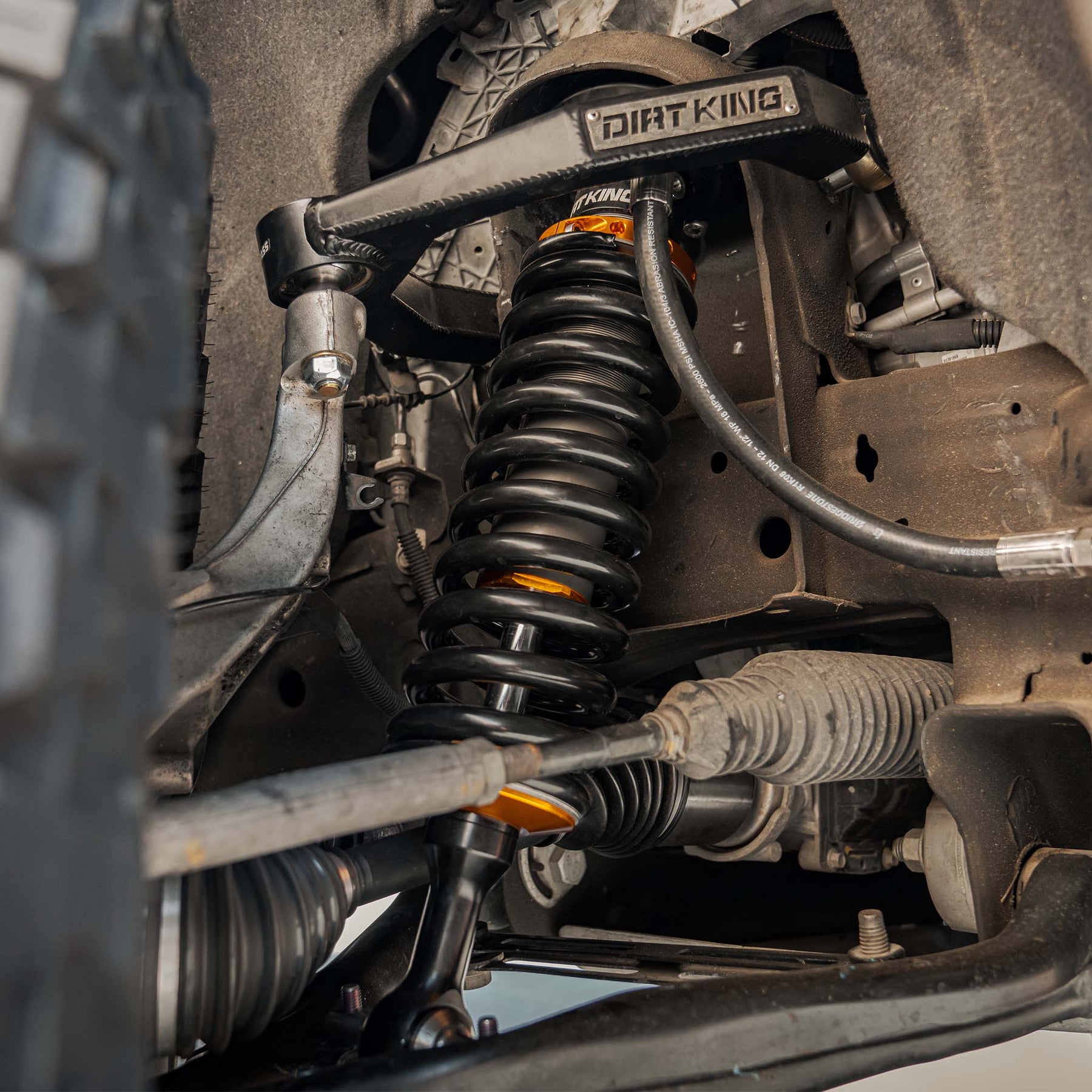

- Direct bolt-on replacement that uses factory shock mounting location
- Maxima custom oil blend. The proprietary light viscosity semi-synthetic oil blend is low friction and extremely resistant to high operating temperatures
- Cold wound, high-tensile alloy steel coil springs that retain consistent rate and ride height
- Completely rebuildable and serviceable. All tools and replacement parts can be purchased from Dirt King
Instructions
Compatibility

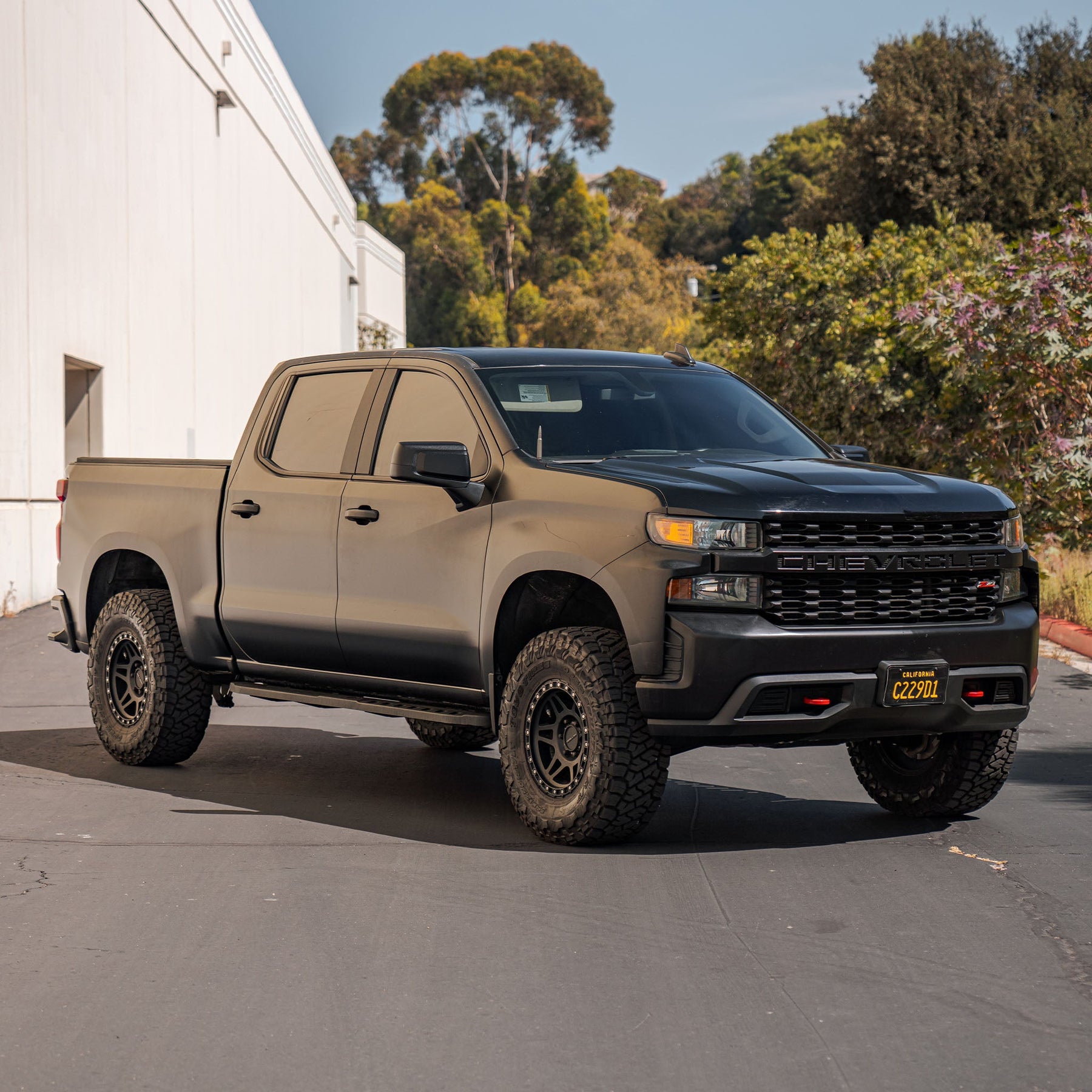

2019-2026 Chevy Silverado 1500 2WD / 4WD
2019-2026 GMC Sierra 1500 2WD / 4WD
*Requires ARC delete for models equipped with ARC (Adaptive Ride Control also know as MagneRide)
*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
*All Dirt King shocks are backed by a comprehensive one year warranty.
