Works Performance Shock Eyelet Mounting Bushings

Name: Schmidty Racing Suspensions
Address: 8150 E Germann RD, Suite 104, Mesa, AZ, 85212, US
Telephone: (602) 920-1337
Price range: $$

$26.00

Shipping calculated at checkout.

Mounting Bushing

Heim Style 19mm

Heim Style 30mm

Heim Style 32mm

Heim Style 45mm

Delrin 30mm

Delrin Sleeve Style 32mm

Urethane Sleeve 19mm

Quantity

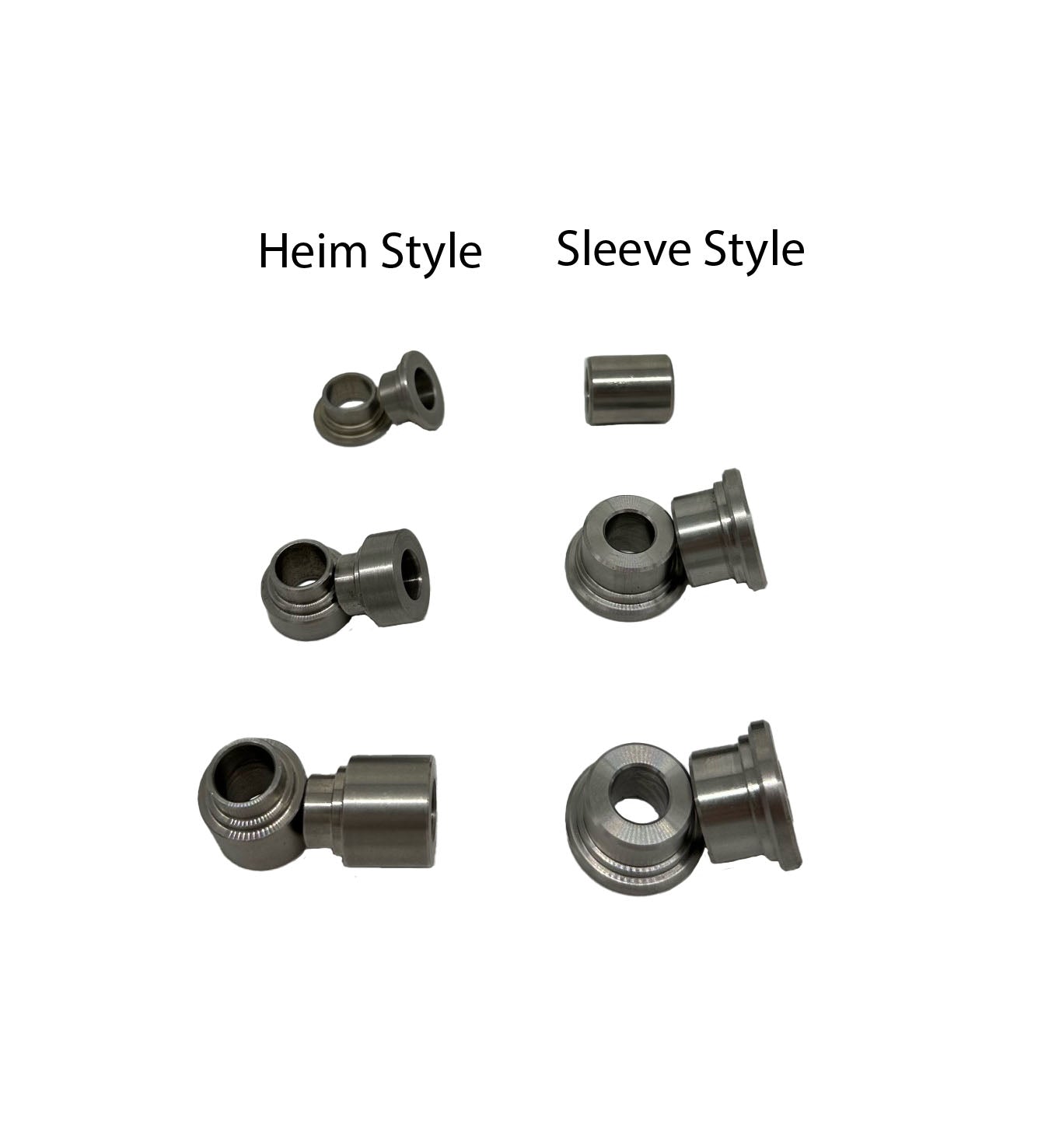

These are stainless steel mounting bushings from Schmidty Racing Suspensions for Works Performance shock eyelets. These mounting bushings are available in different styles ("step-bushing" and "sleeve-style") with options for each. See option descriptions below. These bushings DO NOT include the heim nor the sleeve for the eyelet.

Step-Bushing Options:

Heim Bearing "Heim Style" Step-Bushings: The "Heim Style" mounting step-bushings slip / fit into the heim bearings that are pressed into the shock eyelets. Available mounting widths:

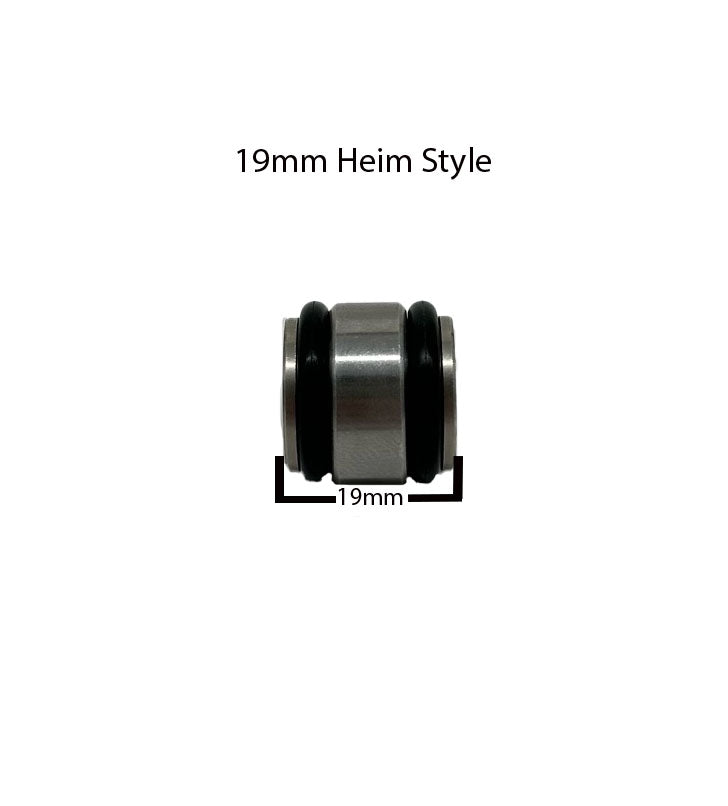

19mm wide (distance between your arm or frame tabs) for 10mm bolts

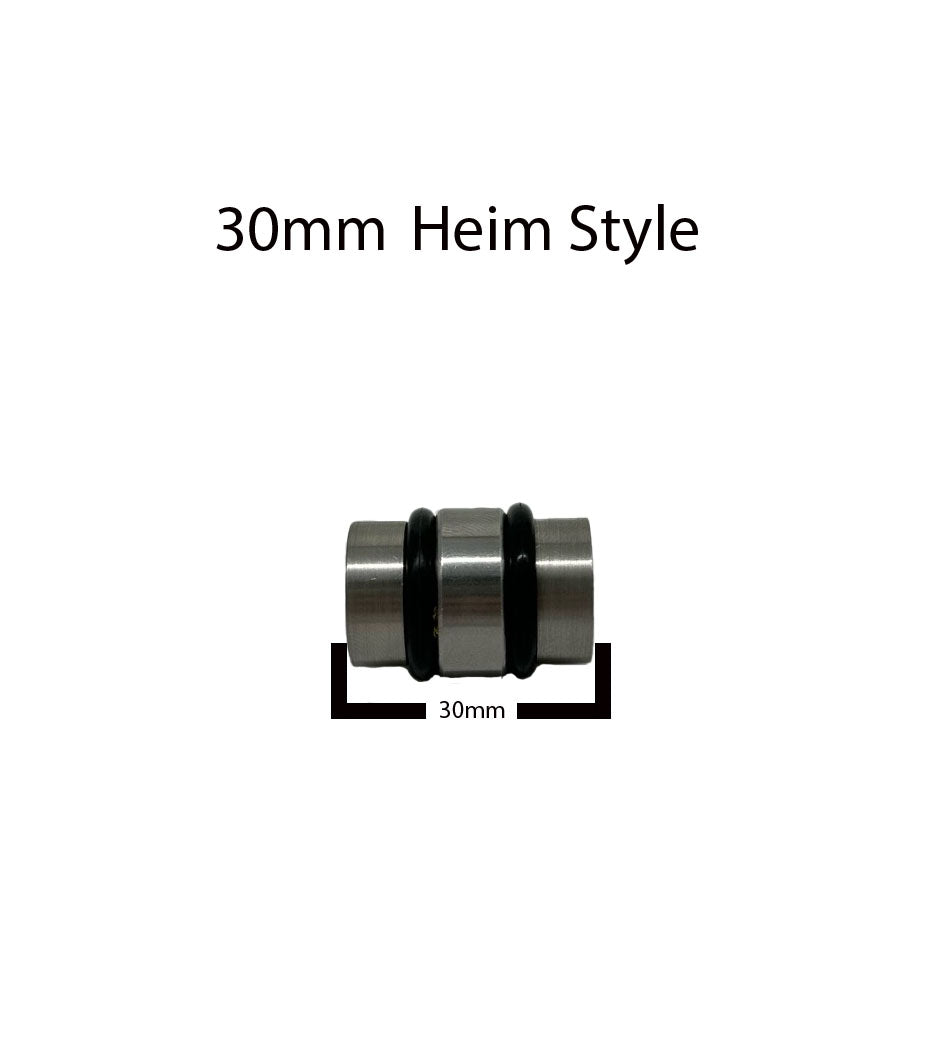

30mm wide (distance between your arm or frame tabs) for 10mm bolts

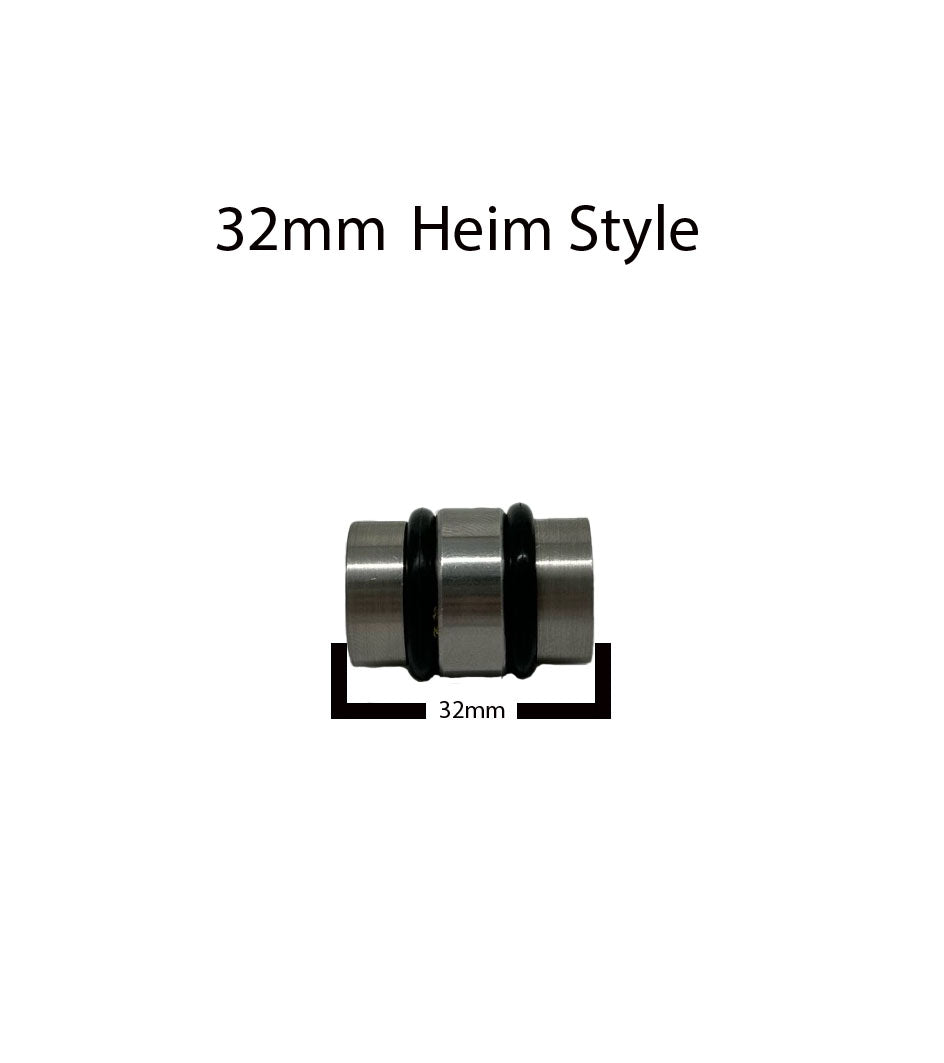

32mm wide (distance between your arm or frame tabs) for 10mm bolts

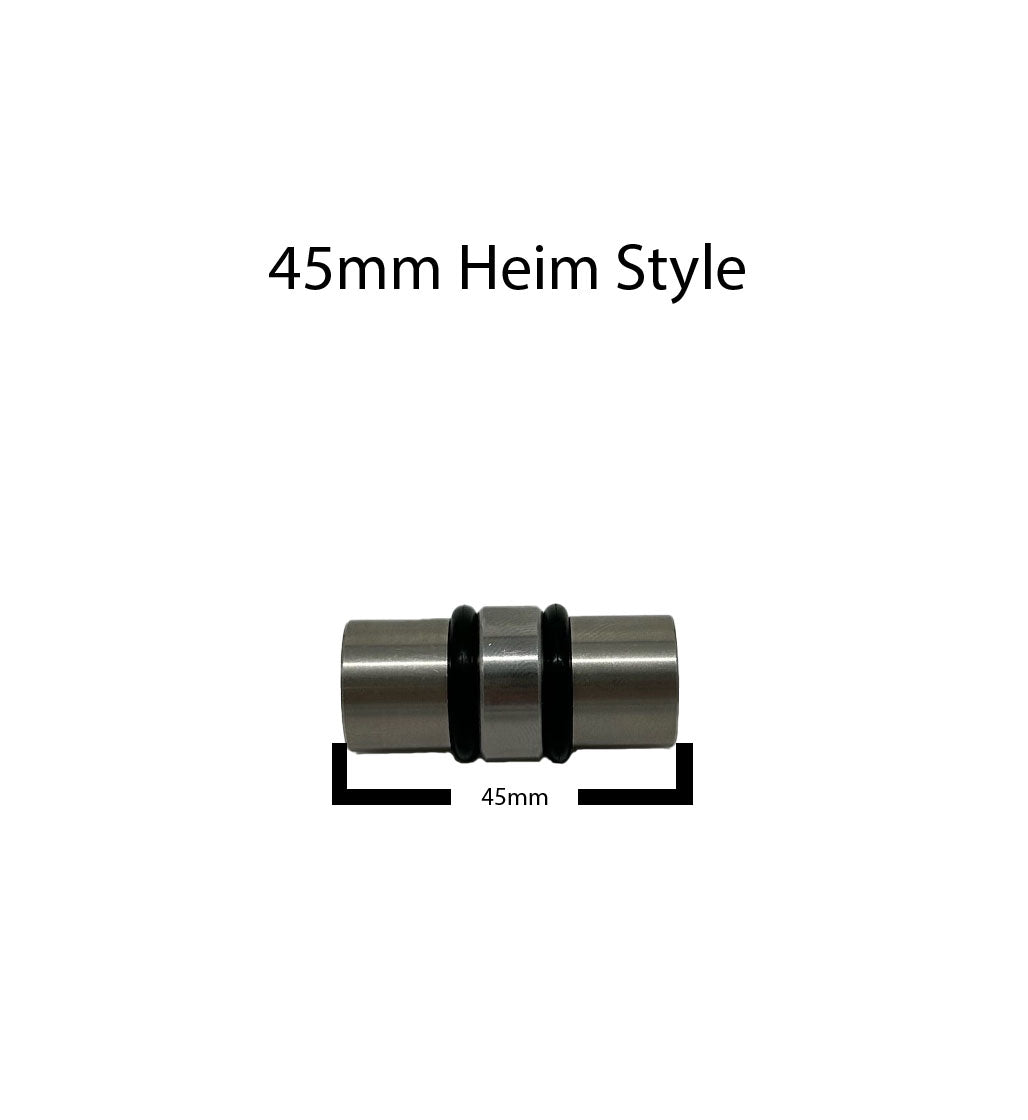

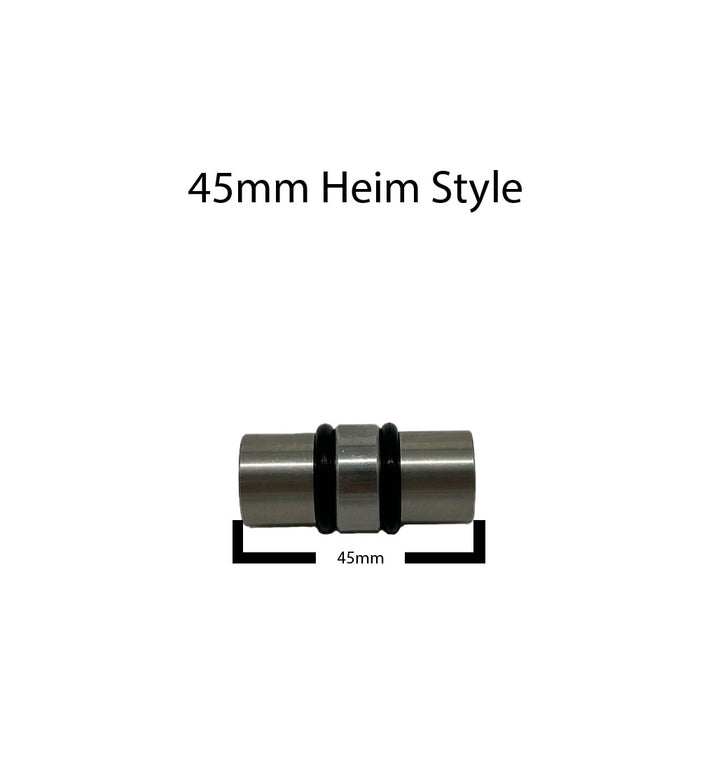

45mm wide (distance between your arm or frame tabs) for 10mm bolts

Delrin "Sleeve Style" Step-Bushings: The "Sleeve Style" mounting step-bushings slip / fit into the thin-walled Delrin wear sleeves that are pressed into the shock eyelets. Available mounting widths:

30mm wide (distance between your arm or frame tabs) for 10mm bolts

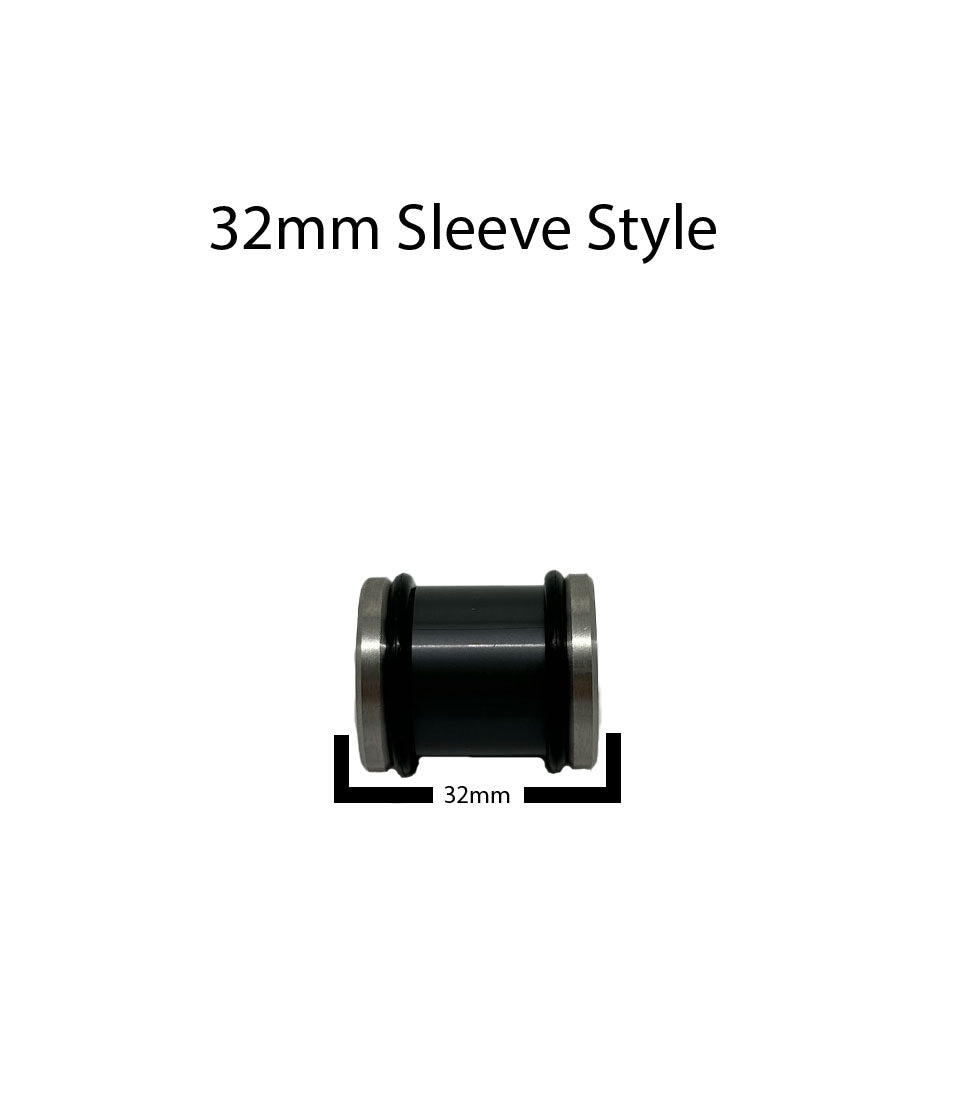

32mm wide (distance between your arm or frame tabs) for 10mm bolts.

Step-Bushing Sets Include:

(2) Step Bushings
(2) Replacement Bushing O-Rings

Does not include eyelets, wear sleeves, or heim bearings. We do carry them, but they are not included

Sleeve-Bushing Options:

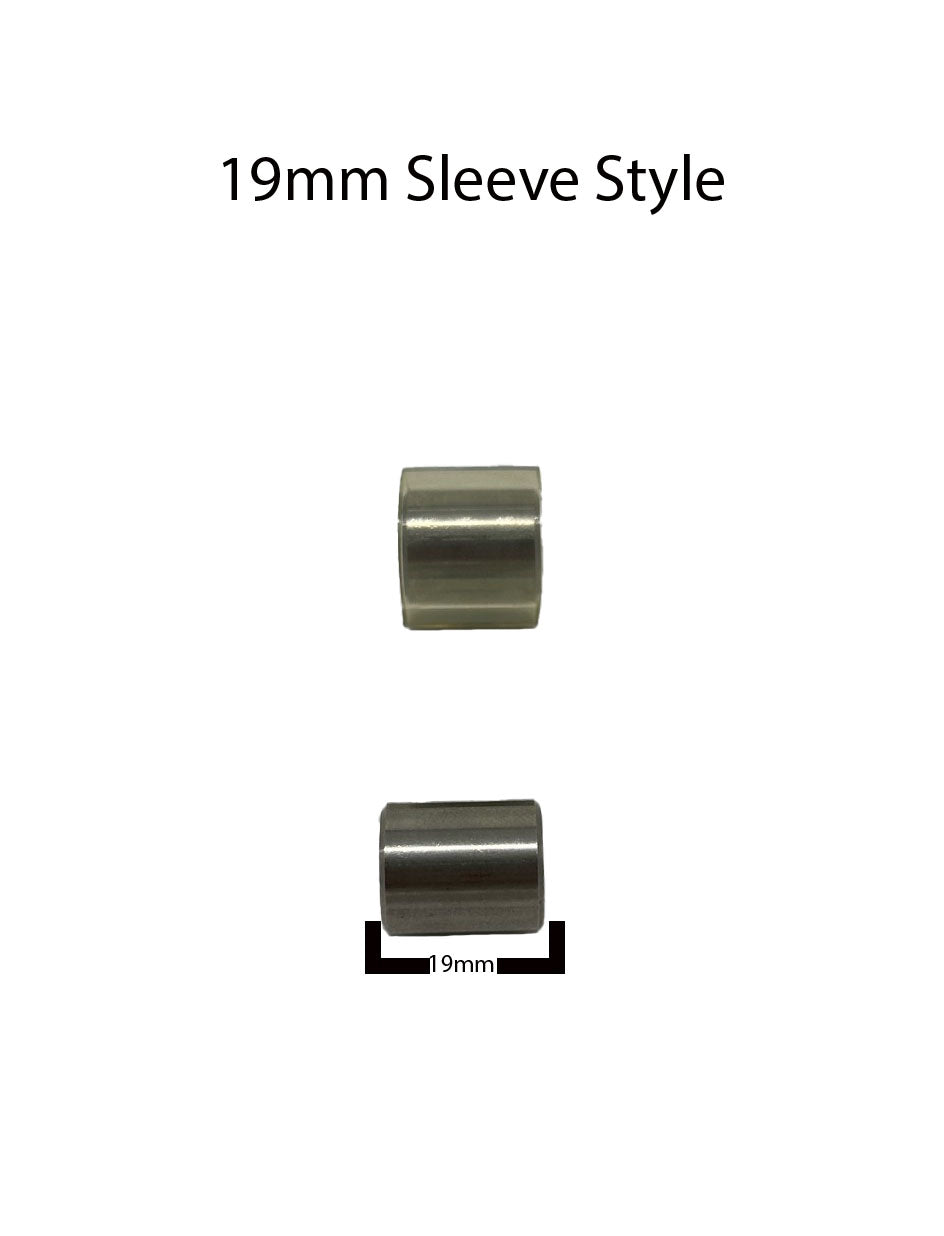

Urethane Sleeve Style:

Sleeve-bushings are sold individually, and press into urethane wear sleeves, which is pressed into the eyelet.

19mm for 10mm bolts
