Uniweld 800 PSI Nitrogen Regulator Kit | with Dual Hose
N-REG-UNI-800-DUAL-8R

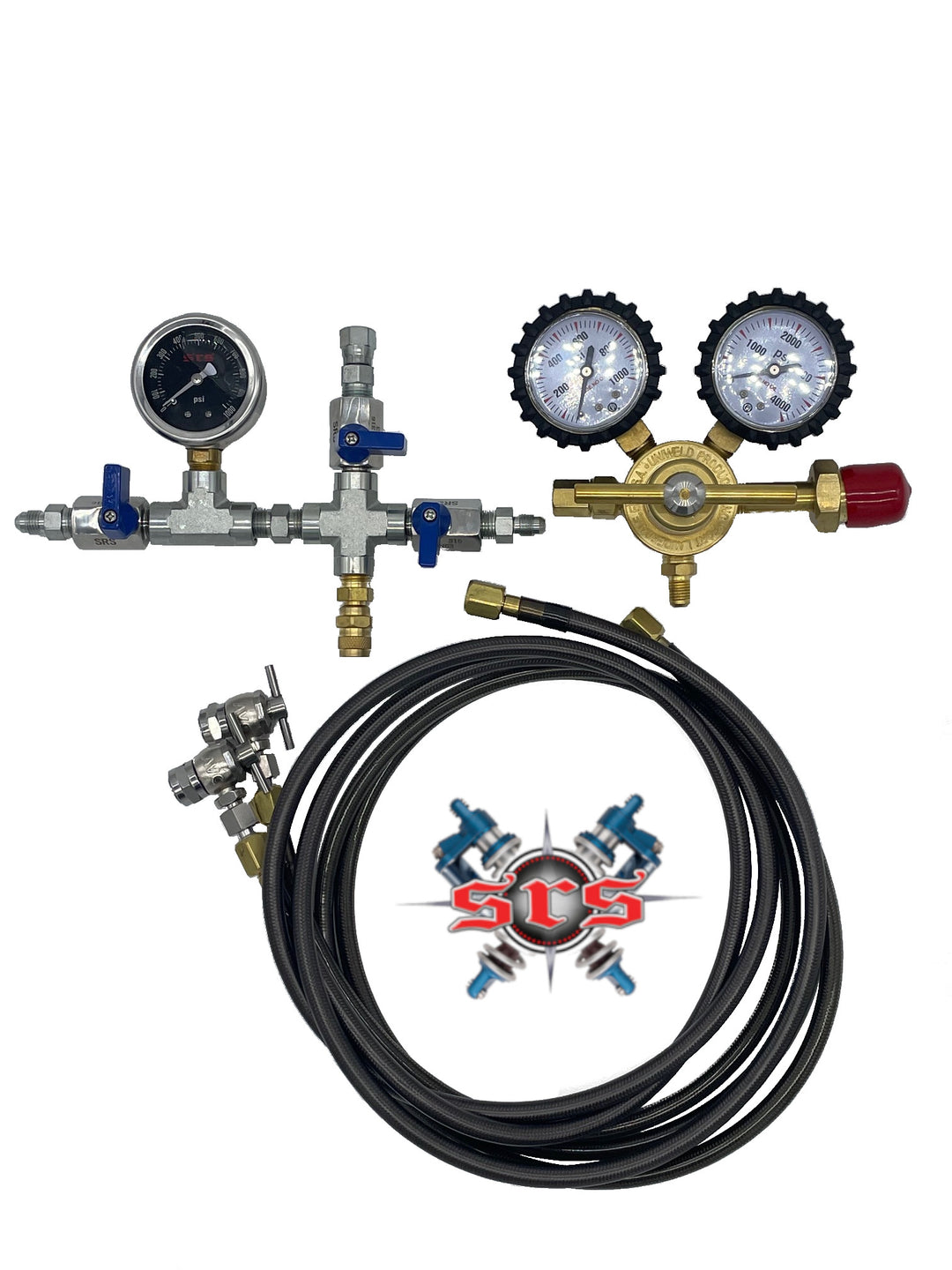

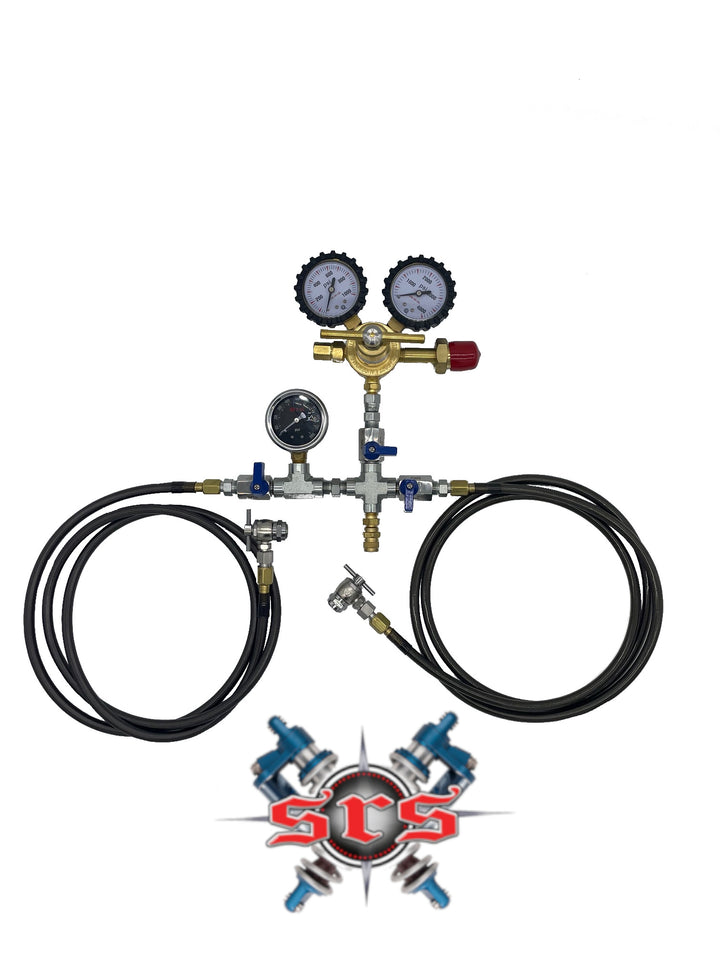

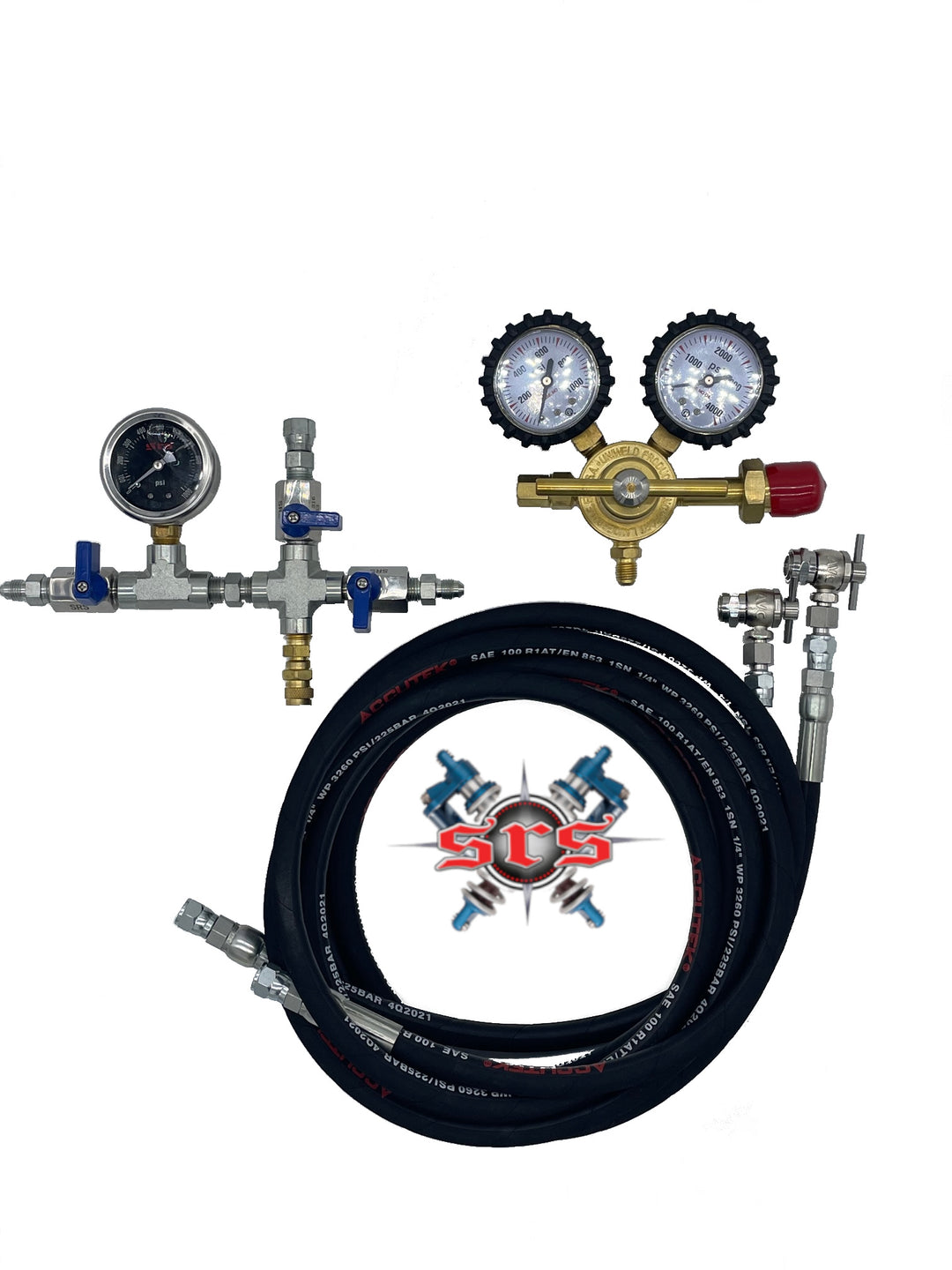

This is a dual hose shock nitrogen filling kit from Schmidty Racing Suspensions commonly used to charge shocks such as ORI, King, and Fox, or anytime you want to charge two chambers simultaneously. Kit includes a Uniweld RHP800 (0 - 800 PSI) regulator and comes standard with dual 8' long rubber hoses. There are different hose length options made of either rubber or stainless steel.
Hose Options:
- Rubber: 8', 12', 15' lengths
- Stainless Steel: 6', 8', 12', 15' lengths
The rubber hoses are rated to 3250 PSI; the stainless steel ones are Teflon-lined and rated to 3000 PSI. Either type of hose has female swivel fittings on each end. The main manifold has a stainless steel shut off valves for each line. Each hose line has a small bore no-loss chuck on the end that is mounted to the hose via a swivel fitting that rotates 360 degrees to get into any position without twisting or kinking the hose. The no-loss chuck opens and closes schrader valve stems under constant pressure via the small "T" handle, which gives accurate and repeatable pressure setting of nitrogen pressures for all offroad ATV, ATC, UTV, dirt bike, sand rail, buggy shocks, etc.
The fill tool manifold has a secondary 0-1000 PSI gauge (SRS logo) with a bleeder valve for fine tuning pressure on each line. The manifold assembly is detachable from the regulator via the swivel fitting for easy storage or transport. Regulator fits most standard nitrogen tanks, which are available at most welding supply stores.
Our kits are built using the highest quality components, and are assembled right here in America!!
Specifications:
-
RHP800 Regulator:
- 0 - 4000 PSI tank gauge (rubber cushioned to guard from damage)
- 0 - 1000 PSI output gauge (rubber cushioned to guard from damage)
- CGA-580 tank supply nipple (will fit most nitrogen tanks available locally)
- 800 PSI MAX output / delivery pressure
- 360 degree swivel fitting
- Fits schrader / tire stem thread size .305-32
- Seals to schrader stems via sealing crush washer
- Nickel-plated brass body; rest is stainless steel
- Supply line connection is -4 and is 90 degrees to axis of valve
No-Loss Chuck:
