Comparable Part: Polaris 1500628

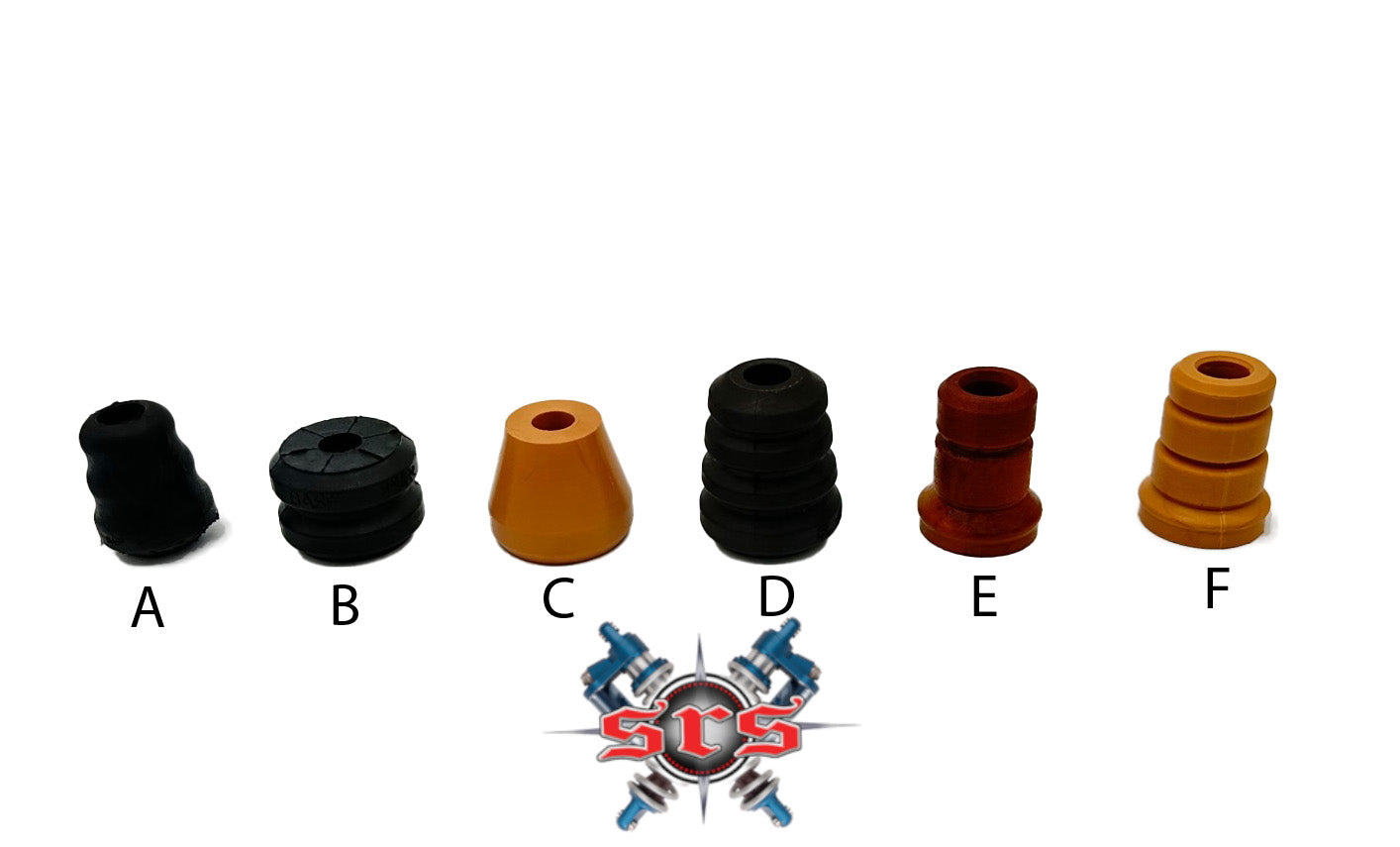

These are bottom out bumpers from Schmidty Racing Suspensions with options for different styles and models. Available styles are described below.

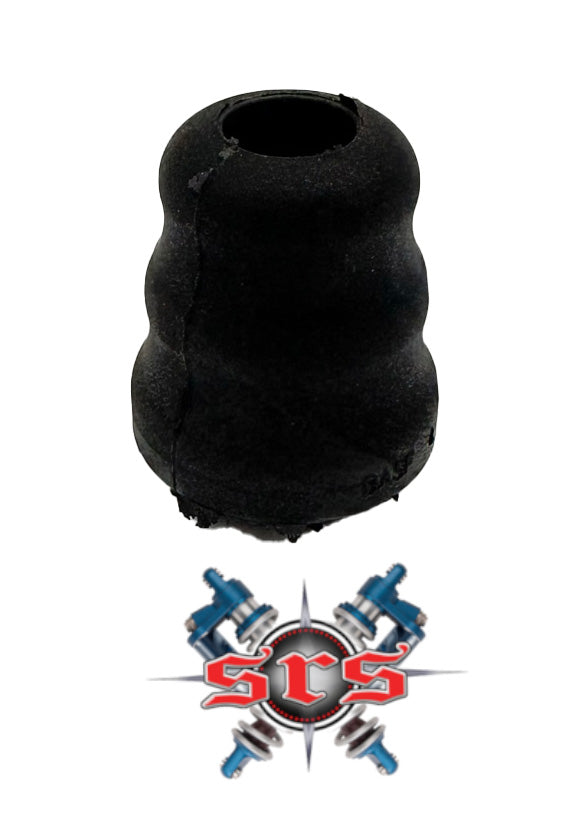

Style A:
Bumper Size:
- 1.5" base OD x 1.950" height x 5/8" (16mm) shaft bore
Density:
Will fit Fox 1.5" Fox Podium series shocks with 5/8" (16mm) shafts. This bumper is commonly found on Polaris RZR 800S and many other Fox Podium ATV 1.5" shocks. Also used on Custom Axis, Works Performance, TCS, Elka, and many other ATV front shock brands with 5/8" shafts. Bumper can be cut down if you need a shorter length. (Polaris 1500628)

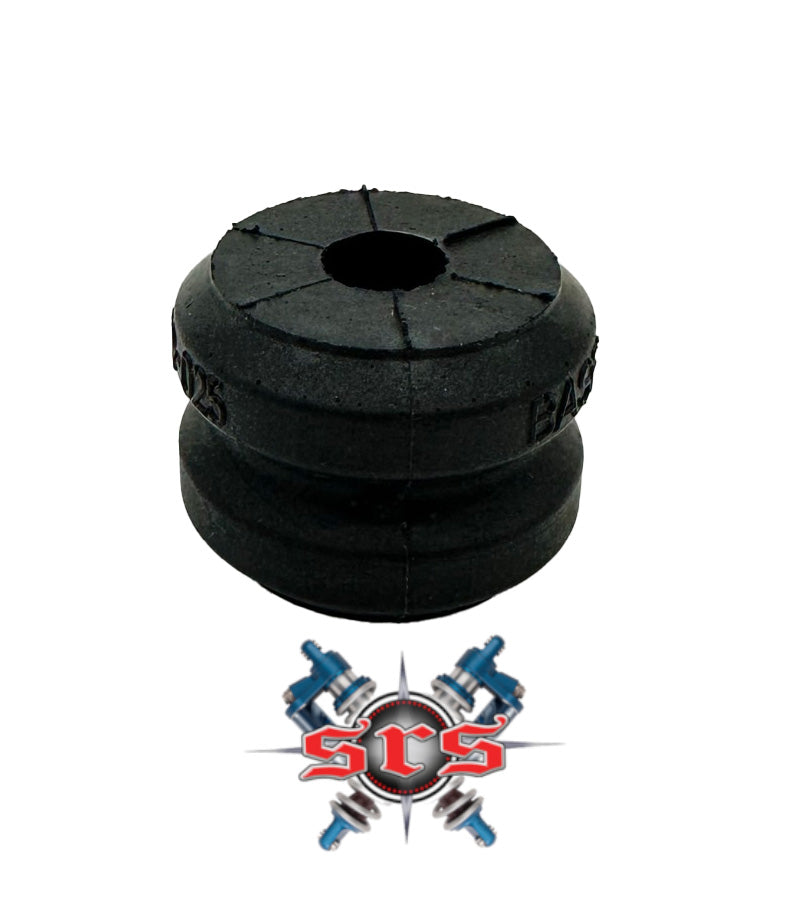

Style B:
Bumper Size:
- 1.6" base chamber OD x 1.970 overall OD x 1.420" height x 5/8" (16mm) shaft bore
Density:
Will fit Fox 2.0" Fox Podium/Performance series shocks with 5/8" (16mm) shafts. This bumper is what is standard on Polaris RZR 900/1000S and can be used on other Fox Podium ATV / UTV 2.0" shocks. Can also be used on Custom Axis, Works Performance, TCS, Elka, and other ATV large body rear shocks with 5/8" (16mm) shafts. This is a firmer compound than Style A and can be used for a more progressive application. Bumper can be cut down if you need a shorter length.

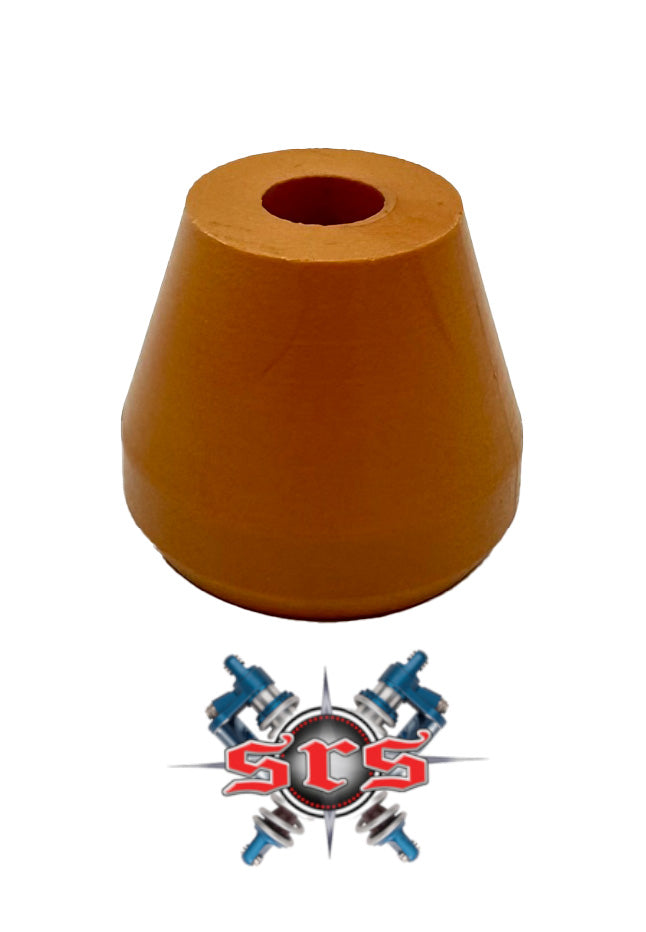

Style C:
Bumper Size:
- 2.0" base OD s 1.75" height x 5/8" (16mm) shaft bore
Will fit Fox 2.0" Fox RC2 and Podium / Performance series shocks with 5/8" (16mm) shafts. Will also fit Walker Evans 2.0" shocks with 5/8" shafts. Can also be used on Custom Axis, Works Performance, TCS, Elka, and other ATV rear shocks with 5/8" (16mm) shafts. Bumper can be cut down if you need a shorter length.

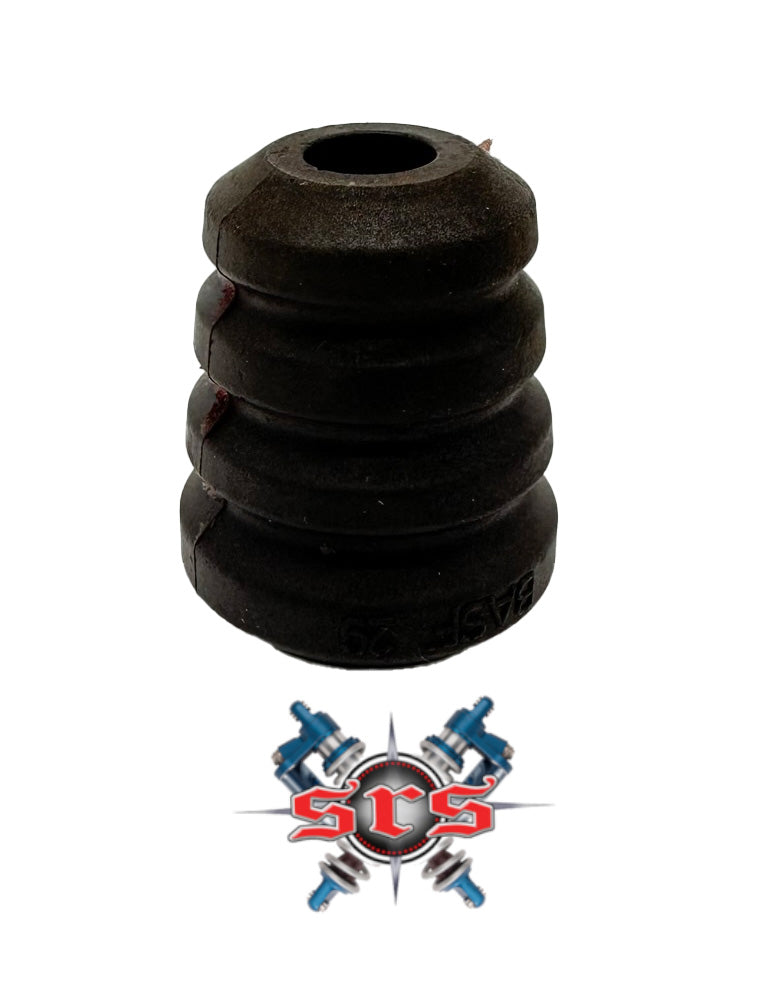

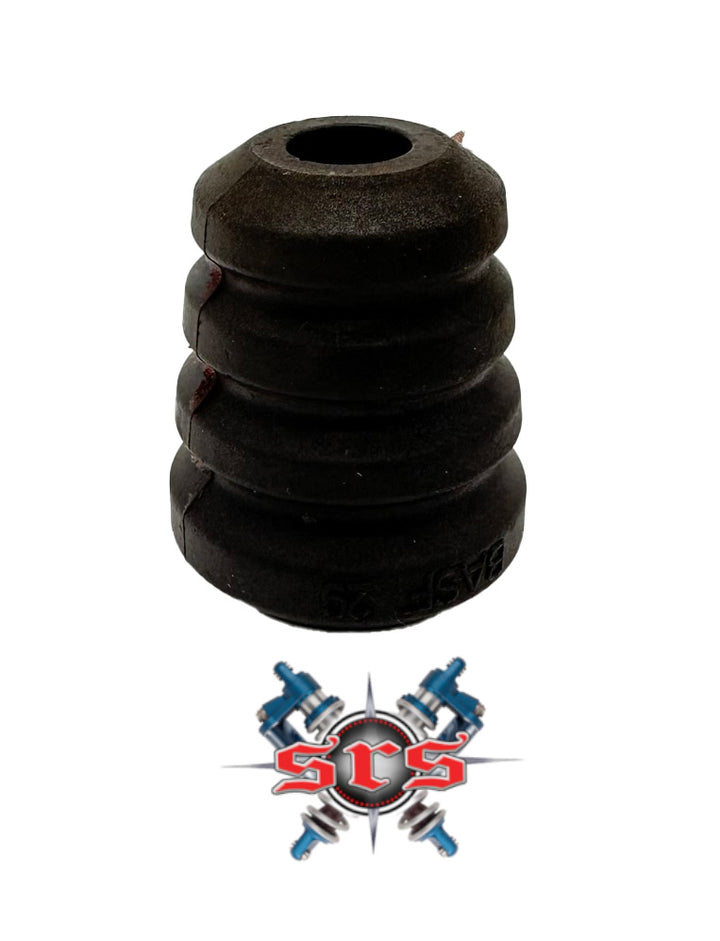

Style D:
Bumper Size:
- 2.0" base OD x 2 3/8" height x 5/8" (16mm) shaft bore
Will fit Fox 2.0" Fox Podium / Performance series shocks with 5/8" (16mm) shafts and Walker Evans 2.0" shocks with 5/8" (16mm) shafts. Can also be used on Custom Axis, Works Performance, TCS, Elka, and other ATV rear shocks with 5/8" (16mm) shafts. Bumper can be cut down if you need a shorter length.

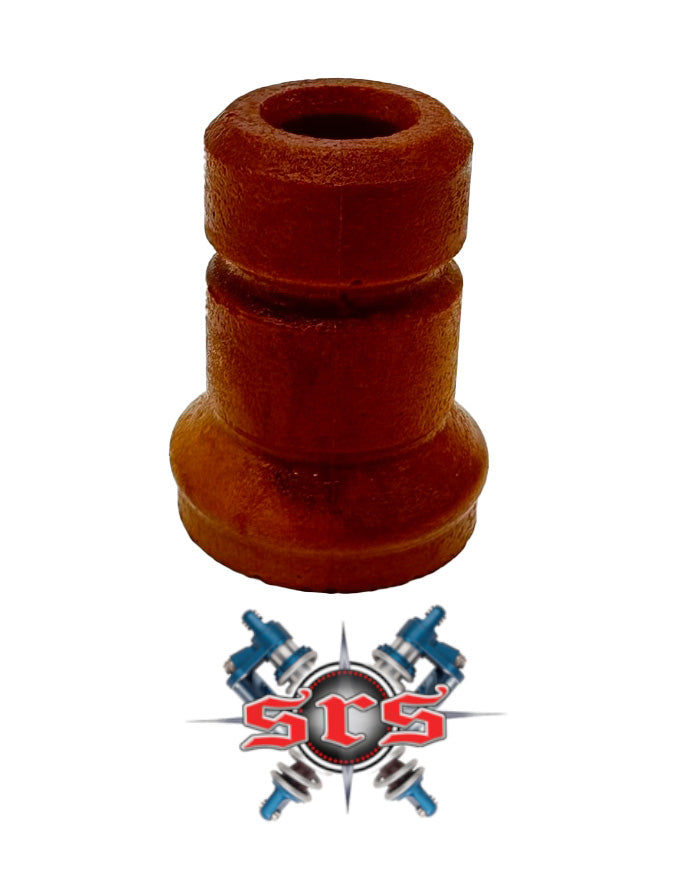

Style E:
Bumper Size:
- 1.65" base OD x 2.2" height x 5/8" (16mm) shaft bore
Density:
Will fit Fox 1.5" Fox Podium Shocks with 5/8" (16mm) shafts. This bumper can be used on Polaris RZR 800S, as well as other Fox Podium ATV 1.5" shocks. Can also be used on Custom Axis, Works Performance, TCS, Elka, and other ATV front shock brands with 5/8" (16mm) shafts. This is a firmer compound than Style A and can be used for a more progressive application. Bumper can be cut down if you need a shorter length.

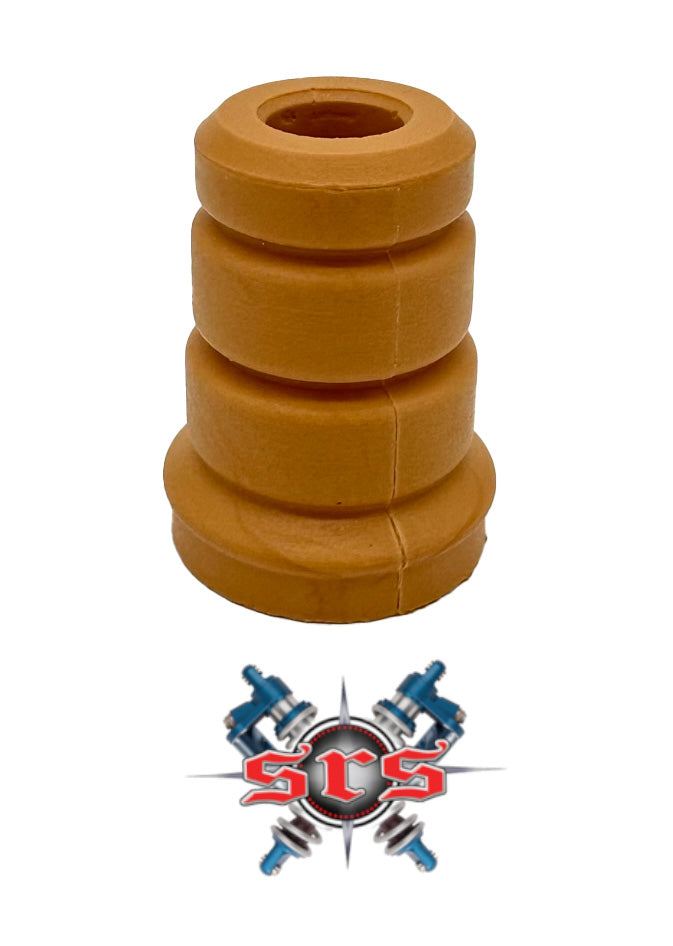

Style F:
Bumper Size:
- 1.65" base OD x 1.730 widest bottom OD x 1.33" top OD (16mm) shaft bore
Density:
Will fit Fox 1.5" Fox Podium Shocks with 5/8" (16mm) shafts. This bumper can be used on Polaris RZR 800S as well as other Fox Podium ATV 1.5" shocks. Can also be used on Custom Axis, Works Performance, TCS, Elka, and other ATV front shock brands with 5/8" (16mm) shafts. This is a firmer compound than Style A and can be used for a more progressive application. Bumper can be cut down if you need a shorter length.
